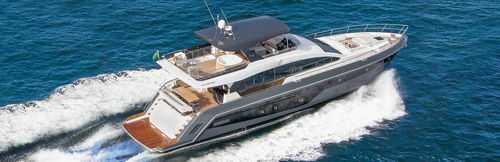

Cruising motor yacht 770

flybridgeinboardIPS

Overview
Schaefer Yachts has continuously innovated over its 32-year history. The Schaefer 770 is a bold, modern project with well-defined lines that optimize onboard spaces for comfort and leisure. Discover the Schaefer 770 and a range of new onboard experiences.

Concept and design
The Schaefer 770 features side balconies on both sides and a fully levelled deck, expanding leisure and social areas by integrating saloon, galley, bar and aft cockpit with the sea. The design was developed by Schaefer Yachts' engineering team to maximize volume and integration of onboard spaces.

Platform and convenience
The transom platform is designed to submerge 30 cm below the waterline and supports loads up to 800 kg, suitable for transporting jet-skis or inflatable boats. It includes an integrated ladder to assist re-boarding, providing convenience and elegance.

On board

• Integrated layout that enlarges social areas between saloon, galley and aft cockpit.
• Fully level deck for improved circulation and space utilization.
• High-capacity submersible platform (up to 800 kg) with integrated ladder.

Flybridge and leisure areas
The flybridge prioritizes space and entertainment: bar, grill, large sofa for up to 6 people, helm station and whirlpool, creating a social and leisure environment.

Finishing and materials
Refined finishing and careful attention to detail. High-quality materials and handcrafted details produce a luxurious and comfortable onboard atmosphere.

Technology and construction
Modern navigation equipment with multi-touch panels, joystick driving and advanced sensors provide full control and an easy-boating concept. Production includes vacuum resin infusion and 5-axis CNC machining for high precision and finish standards.

Propulsion
Propulsion option: Volvo Penta IPS1050. The IPS1050 is powered by the D13 diesel engine (12.8 L, inline 6) with common-rail, dual-entry turbocharging, delivering excellent maneuverability, low-rpm response, efficiency and reduced emissions. Integration includes EVC, counter-rotating twin propellers, joystick and dynamic positioning features.

Technical characteristics / specifications

• Overall length: 23.53 m (77.19 ft)
• Maximum beam: 5.91 m (19.38 ft)
• Maximum draft: 1.65 m (5.4 ft)
• Light displacement: 51,780 kg
• Maximum height above waterline: 7.94 m (26.04 ft)
• Stern deadrise angle: 15.6º
• Fuel capacity: 4,450 L (1,175 gal)
• Freshwater capacity: 1,400 L (422 gal)
• Maximum persons capacity: 25
• Berths / overnight: 8+3
• Designer: Marcio Schaefer
• Propulsion: Volvo Penta IPS1050 (D13 12.8L inline-6 diesel)
