ship ATEX lighting
Jamin 133

Add to MyNauticExpo favorites
ship ATEX lighting ship ATEX lighting - Jamin 133
{{requestButtons}}

Characteristics

  • Options:

    for ships

Description

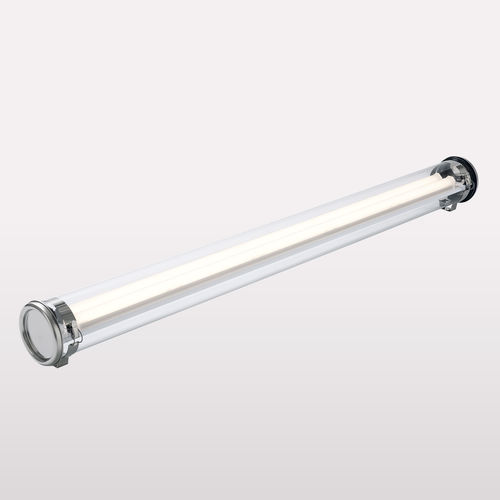

JAMIN 133
Easy maintenance impervious tubular light fitting for explosive environments
Housing:
Ø133 mm coextruded polycarbonate/PMMA diffuser for chemically aggressive environments and outdoor lighting
End caps 1/2 ring press-formed in 304L stainless steel (316L also available)
Gaskets moulded in EPDM
Cable entry with cable gland
Possibility for a model with 2 cable entries for looping-in (2 cable glands with stopper plug or 1 cable gland and 1 blind plug at the same cap)

Gear tray with LED:
Gear tray in white powder coated steel
Light mixing chamber
Aluminium heat sink
Optical diffuser
High-efficiency LED moduls (145 lm/W)
- Service life: 50,000 hours L80/B50
- Colour temperature: 3000 K or 4000 K
- CRI > 80
Integrated LED-Driver 220-240V 50/60Hz with constant current output

Characteristics:
ELECTRICAL CLASS
Class 1
FIRE RESISTANCE
650°C
PROTECTION
IP66, IP68, IP69K
SHOCK RESISTANCE
IK10
OPERATING TEMPERATURE
-20°C +40°C
PROTECTION AGAINST EXPLOSION
Zones 2, 21 and 22
CE 0080
II 3G Ex nA IIC T4 Gc
II 2D Ex tb IIIC T80°C Db IP66/IP68

MAIN REFERENCES
Versions with coextruded polycarbonate/PMMA housing: Equivalent to 2x36W T8
5550lm JAM133 23H830 POME 113
5550lm JAM133 23H840 POME 113
Versions with coextruded polycarbonate/PMMA housing: Equivalent to 2x58W T8
9250lm JAM133 25H830 POME 113
9250lm JAM133 25H840 POME 113
