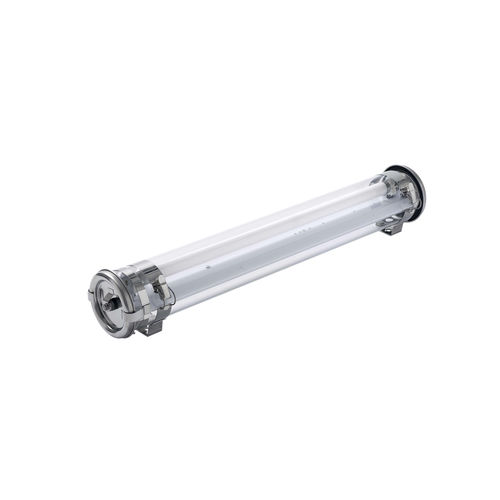

DAVY 100
Impervious light fitting for difficult explosive environments

HOUSING
Ø100 mm diffuser in borosilicate glass for corrosive environments
Also available in coextruded polycarbonate/PMMA for chemically aggressive environments and outdoor lighting
End caps 1/2 ring press-formed in 304L stainless steel (316L also available)
Gaskets moulded in EPDM
Cable entry with cable gland
Possibility for a model with 2 cable entries for looping-in (2 cable glands with stopper plug or 1 cable gland and 1 blind plug at the same cap)

GEAR TRAY
White powder coated steel sheet gear tray
Hot cathode electronic gear unit (EEI A2)
Industrial electronic ballast for difficult environments available
Internal wiring with silicone isolation braided with glass fibre

PROTECTION AGAINST EXPLOSION
Protection: Protection « n »
Compliant with the ATEX 94/9/EC directive and standards IEC 60079-0, IEC 60079-15, IEC 60079-31

CHARACTERISTICS
ELECTRICAL CLASS
CLASS 1
LAMP TYPE
1 T8 lamp
FIRE RESISTANCE
Coex. polycarbonate/PMMA 650°C
Borosilicate glass non-flammable
PROTECTION
IP68
SHOCK RESISTANCE
Coex. polycarbonate/PMMA IK10
Borosilicate glass IK07
OPERATING TEMPERATURE
-20°C TO 40°C
PROTECTION AGAINST EXPLOSION
ZONES 2, 21 AND 22
CE 0080
II 3G Ex nA IIC T4 Gc
II 2D Ex tb IIIC T80°C Db IP68

MAIN REFERENCE
Electronic gear unit - without reflector
1x18W DAV100 118E G13 PY 113 BRS
1x36W DAV100 136E G13 PY 113 BRS
1x58W DAV100 158E G13 PY 113 BRS
Industrial electronic gear unit - without reflector
1x36W DAV100 136I G13 PY 113 BRS
1x58W DAV100 158I G13 PY 113 BRS
