Inboard express cruiser Hyper 5S

triple-enginesoft-top18-person max.

Overview SACS Hyper 5S proposes a new concept of yacht that combines sports‑oriented hull performance with versatile living spaces and direct sea connection. Not a conventional RIB nor a traditional planing yacht: the platform emphasises clean forms, intuitive layouts and configurable deck volume.

Design & Aesthetics Bold exterior lines and generous volumes below deck provide ample natural light and premium finishes. The arrangement is conceived to prioritise onboard usability, flexibility and continuous interaction with the sea.

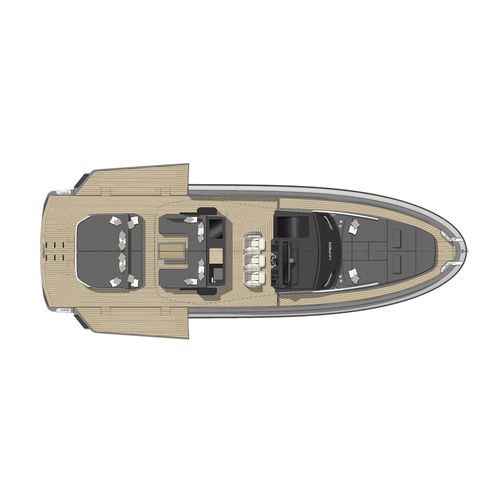

Key design concepts

• Opening side terraces that expand deck area and open directly onto the sea (deck can expand up to 32 sqm).
• Configurable aft deck: large sunbed with tender garage or two independent movable sunbathing modules.
• Bow lounge with sunbed and chaise longues for forward-facing relaxation.
• Open/closed configuration options to tailor protection and openness.

Main features

• Multiple deck layouts and generous walkable deck area (25 sqm / 32 sqm with open side terraces).
• Aft deck with electrically operated garage compartment and retractable stainless‑steel swim ladder.
• Bow sunbed with handrails and double chaise longue; fold-down side terraces and stern platform.
• Anti‑glare black Plexiglas dashboard with leather accents and Isotta steering wheel.
• Volvo Penta joystick and 7″ Volvo Glass Cockpit engine displays on applicable configurations.
• Interior: U-shaped sofa with storage, folding dining table, 100 L refrigerator and multiple storage/vanity units.

Propulsion options The hull accepts multiple propulsion solutions to interpret the yacht’s character: stern drives, IPS pod drives, surface drives or powerful outboard installations. Suggested configurations include 3× Volvo Penta 480 HP stern drives, 2× Volvo Penta IPS 800 (600 HP), 2× 850 HP MAN with surface drives, or outboard options (4× Mercury Verado V10 425 HP or 4× Mercury V12 600 HP).

Performance & range (test conditions) Manufacturer test figures are reported for optimal weather and recommended engine configurations. *Max speed (kn): 41; *Cruise speed (kn): 32; *Consumption at cruise (gal/h): 58.11; *Range at cruise (nm): 260.

Technical data table

• Length: 14.6 m (47.9 ft)
• Certifying length: 12.6 m (41.34 ft)
• Beam: 4.6 m (15 ft)
• Height: 3.98 m (13.05 ft)
• Draft: 0.96 m (3.15 ft)
• Fuel capacity (depending on propulsion): from 1,910 L up to 3,600 L
• Fresh water: 290 L
• Waste water: 70 L
• Persons capacity: 18
• Sleeping accommodation: 3+1
• Walkable deck area: 25 sqm / 32 sqm with open side terrace
• Hull type: V hull; Dead rise: 19.2°
• Homologation category: CE - B
• Design: Christian Grande Design Works; Project: SACS Marine
• Suggested engines: 3×480 HP Diesel; Max installable power: 1,440 HP; Transmission: DPI; Weight with engines: ~16–17.8 t

Deck equipment summary

• 6 mooring cleats (2 bow – 2 amidships – 2 stern).
• Electric windlass with helm control; 21 kg polished stainless‑steel anchor with 50 m stainless chain.
• Fold‑down side terraces and stern platform for extended deck area.

Helm station highlights

• Anti‑glare black Plexiglas dashboard with leather accents and Isotta steering wheel.
• Volvo Penta joystick, vandal‑resistant switches and Lopolight navigation lights.
• 3 helm seats and a crystal side door providing access below deck.

Cockpit highlights

• 100 L 24V/250V refrigerator.
• Folding dining table; U-shaped sofa with storage; aft sunbed with headrest; forward-facing sofa.
• Electrically operated garage compartment with space for tender storage.

Forward owner’s cabin

• Super Queen-size double bed with 15 cm memory-foam mattress and quilted cover.
• Tray-style bedside tables, adjustable LED reading lights, USB sockets, full-height wardrobe and vanity units.

Aft storage & conversion

• Convertible sofa bed with storage compartments and side windows with fabric curtains.

Electrical system

• Electronic battery isolators; multiple AGM service and starter batteries; automatic battery chargers.
• 230 V system with Schuko sockets and USB charging points throughout; shore power connection (63 A cable).

Fresh water & waste systems

• 290 L fresh-water tank and 40 L dual-circuit water heater.
• Twin‑pump pressurised water system with accumulator tank.
• Black‑water system with 70 L tank, electric macerator pump and deck pump‑out fitting; grey‑water collection; freshwater deck wash at bow.

Fuel system

• 3 balanced stainless‑steel fuel tanks with dual filling points (port & starboard) and Volvo filter kit with water separator and alarm.

Bathroom

• Lacquered vanity unit with stone countertop, Vetro Freddo washbasin with mixer tap, electric toilet and separate shower compartment with stone finishes and crystal‑glass door.

Safety

• 2 automatic electric bilge pumps with alarm; 2 high‑capacity emergency bilge pumps; manual and automatic fire‑extinguishing system.
