Sterndrive inflatable boat PIRELLI 35

outboardgasolinediesel

Overview

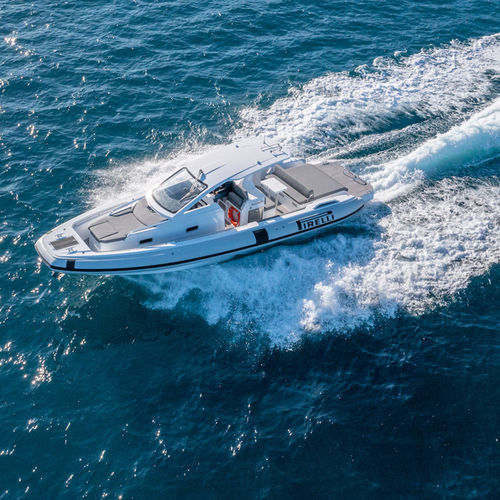

The PIRELLI 35 is a rigid inflatable boat (RIB) that merges the exterior livability of a walkaround with the sportiness of a performance RIB. Developed with Mannerfelt Design Team and SACS MARINE as project partner, it offers versatile layouts, strong propulsion options and configurations suited for professional and leisure use.

Design and Style
Clean, sporty lines maximize exterior living: large sunbathing areas, generous cockpit dining and safe side walkways. Interiors are refined and optimized to provide functional comfort for day cruises and extended outings.

Performance
Advanced hull engineering (double redan Deep V) and optimized lines deliver responsive handling and high speed both in outboard and inboard versions. Configuration options and high maximum installable power ensure strong performance in variable sea conditions.

Comfort
Spacious exterior zones (bow sunbed, large cockpit dining area) and practical layouts support relaxation and safe movement on board. Interior accommodations offer sleeping for two and essential onboard systems for longer trips.

Versions and Special Packages

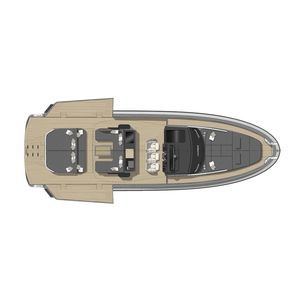

• Standard Walkaround configuration and CC (centre-console) version — CC provides a centre-console layout with an adaptable aft area configurable as facing seating or a large sun pad.
• P Zero™ Edition: exclusive package with P ZERO™ tread on tubes and Silvertex Aluminium upholstery with Rancati Miami piping for a sportier look.

Standard equipment (as listed on the product page)

• 6 mooring cleats
• Electric windlass
• Stainless steel anchor with stainless chain
• Bow thruster
• Hard top with glass windshield
• Windscreen wiper
• Separate bathroom with sink, WC and shower
• Interior cabin cushions
• LED strip lighting in cabin
• Compass
• Digital utilities management system
• LED navigation lights
• Adjustable steering wheel
• Horn
• Battery isolator
• 12 V sockets at helm and in cabin
• Triple helm seat with stand-up cushion
• External sink
• Cockpit refrigerators (x2)
• Cockpit table
• Folding aft sunpad backrest
• Aft-facing seating
• Electric-opening aft technical locker
• Blackwater system with tank and macerator pump
• Stern sunpad
• Fresh water system with autoclave and tank
• Amplifier with 2 additional speakers and 1 remote control
• Inverter and battery charger
• External shower
• Complete external cushions in closed-cell foam
• Electric inflator
• Automatic electric bilge pumps
• Teak deck with black caulking
• Retractable stainless steel bathing ladder

Characteristics / Technical specifications

• Model: PIRELLI 35
• Design: Mannerfelt Design Team
• Project / Manufacturer: SACS MARINE (project partner)
• Certification category: CE - B
• Hull type: Deep V Hull double redan; Dead rise: 21°
• Available configurations: Outboard (recommended for sport/performance) and Inboard (stern drive)
• Overall length (Outboard): 37.89 ft (11.55 m approx) — Overall length (Inboard): 36.42 ft
• Certifying length: 32.78 ft (both versions)
• Overall beam: 12.53 ft (4.70 m)
• Width with deflated tubes: 10.83 ft
• Draft: 2.95 ft
• Number of air compartments (tubes): 6
• Tube diameter: 1.87 ft (0.6 m approx)
• Fuel tank capacity: 195 gal (approx. 740 l; some configurations list up to 1600 l)
• Water tank capacity: 40 gal (approx. 150 l; some configurations list up to 400 l)
• Waste tank capacity: 11 gal (approx. 40 l)
• Persons capacity: 14
• Sleeping accommodation: 2
• Maximum installable power (Outboard): up to 800 hp; (Inboard): up to 700 hp
• Suggested engines: Outboard: 2 x 300 hp (options up to 2 x 400 hp); Inboard: 2 x 350 hp (diesel options listed)
• Drive / Shaft: Outboard: CXXL/XXL; Inboard: Bravo 3 - DPI
• Max speed achievable (Outboard / Inboard): 55 kn / 45 kn
• Cruise speed (Outboard / Inboard): approx. 32 kn / 27 kn
• Consumption (Outboard / Inboard): approx. 21 gal/h / 17 gal/h
• Range (Outboard / Inboard): approx. 290 nm / 305 nm
• Weight with engines (t) (Outboard / Inboard): 5.7 t / 5.4 t
• Hull / Deck / Hard top colour: White RAL 9003
• Tubes colour: ORCA Artic Grey
• Fender: Black / Logo: Black
• Cushions: Mambo Pearl Platinum
