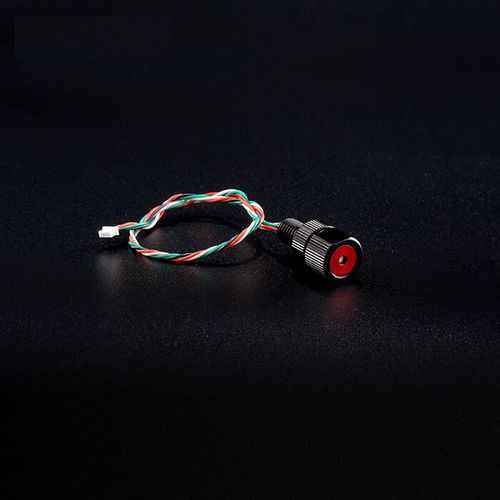

Depth transducer

pressurefor ROVsfor AUVs

This pressure sensor can measure up to 30 Bar (300m depth) with a depth resolution of 2mm. It is waterproof and ready to install, making it an ideal choice for ROVs, AUVs, remote sensors, and underwater instrumentation. Product Description The MS5837 pressure sensor is a new pattern of high-resolution 12C interface pressure sensor. The MS5837 pressure sensor is an ideal choice for high-precision water depth measurement with a resolution of up to 2mm. And the MS5837 pressure sensor module includes a high linearity pressure sensor element and an ultra-low power consumption 24-bit ADC with built-in factory calibration coefficients. MS5837-30BA pressure sensor A provides high-precision 24-bit pressure and temperature digital output, customers can configure the conversion speed and power consumption according to application needs. The high-resolution temperature output can simultaneously realize the function of a thermometer. The MS5837-30BA pressure sensor can be used with all types of microcontrollers, and the communication protocol is very simple, without the need to modify internal registers. Waterproof glue and anti-magnetic stainless steel ring make the sensor can be used for 100 meters waterproof sports watch. This new sensor module is based on advanced MEMS technology and benefits from MEAS’s experience in R&D and mass production of barometric/altimeters over the past ten years. Specification Output: 12C Measuring Range: 0-30bar Package: Ceramics Working Temperature: -20℃-85℃ Accuracy: Resolution 0.2mbar Power Supply: 1.5-3.6V Type: Absolute Pressure Electrical Connection: Pad Refresh Rate: 0.5ms
