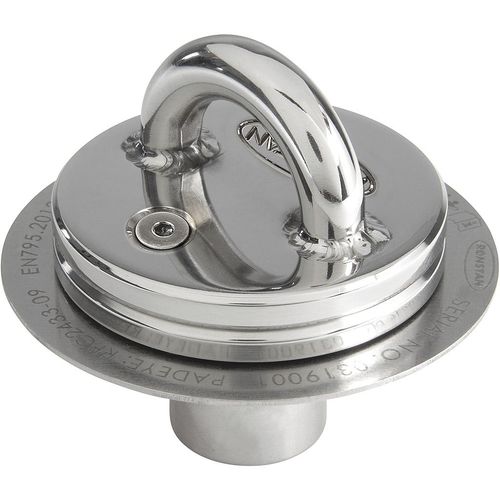

Fixed pad eye RFC2433-09
semicircularfor sailboats

fixed pad eye
fixed pad eye
fixed pad eye
fixed pad eye
Add to favorites
Compare this product


Characteristics

Type
fixed
Configuration
semicircular
Application domain
for sailboats

Description

RFC2433-09 FEATURES Certified to European Standard EN795:2012 Type A and Australian Standards AS1891.4:2009 & AS5532:2013. Screw-in lanyard attachment device can be removed from the base when not in use. Separate locking screw ensures that the screw-in lanyard attachment remains secure when in use. A threaded plug remains in the base when the screw-in anchor device is removed to prevent dirt & grit from entering the threads. Grade 316 stainless steel throughout for maximum corrosion resistance and longevity. The Removable Screw-In Padeye Anchor Device consists of two parts: A structural anchor base which is permanently fixed to the structure. A screw-in anchor for connection of personal protection equipment. The structural anchor base is to be permanently fastened to the structure using 4 x M6 fasteners. The screw-in anchor is attached to the structural anchor base by means of a central threaded spigot. Once fully threaded in place the anti-rotation locking screw must be engaged to ensure that the anchor cannot unintentionally become detached from the structural anchor base. The screw-in anchor has a single attachment point for personal protection equipment. ThreadM16 A29.0 mm B70.0 mm C9.0 mm D26.9 mm E14.0 mm F23.0 mm B. L.- kg Weight303 g
