Audio amplifier PM600X4marine4-channelmulti-channel

audio amplifier
audio amplifier
audio amplifier
audio amplifier
audio amplifier
audio amplifier
audio amplifier
Add to favorites
Compare this product
indicative price

Characteristics

Type
audio
Application domain
marine
Number of channels
4-channel, multi-channel

Description

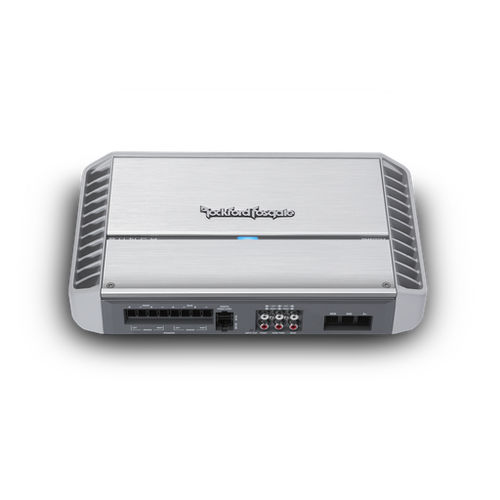

The Punch PM600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum. High level input capable with Auto Turn-On circuit RCA pass-thru outputs Features C.L.E.A.N. Set-up Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator) 12dB/octave Butterworth crossover On-board Punch EQ with +18dB boost @ 45Hz Muted turn on Stealth top mounted control panel Cast aluminum heatsink Short circuit protection Over current protection Marine grade two part epoxy coating on circuit boards Marine grade stainless steel hardware 2-Year Warranty Input Sensitivity150 mV - 12 V Recommended Fuse (not included)100 A Average Current Draw (13.8V Music)45 A Efficiency (average)68% @ 4-Ohm Rated Power (RMS Continuous Power)75 Watts x 4 @ 4-Ohm 150 Watts x 4 @ 2-Ohm 300 Watts x 2 @ 4-Ohm Bridged Dynamic Power (PVC/PowerCube®)129 Watts x 4 @ 4-Ohms 0° Res 211 Watts x 4 @ 2-Ohms 0° Res Shipping Weight12.8 Lbs. (5.80 Kg.) Signal InputHi/Low level: 2 RCA pair CEA-2006 CompliantCEA-2006 GuidelinesCEA-2006 Power Rating 75W x 4 @ 4Ω ≤1.0% THD+N Number of Channels4 Suggested Alternator75 A Operating Voltage9 - 16 VDC Max. Current Draw (13.8V Sinewave)90 A Total Power (Sum of Rated Power)600 Watts Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0% 2-Ohm: <1.0%
