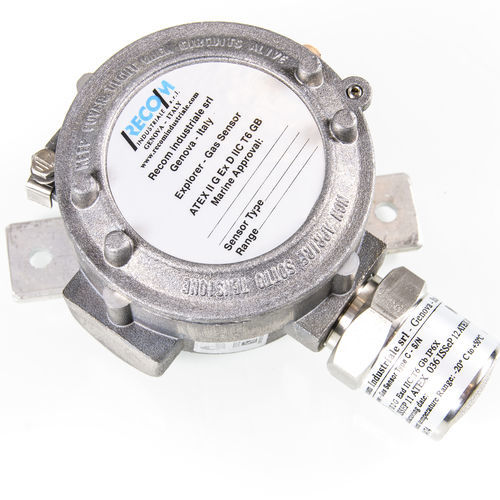

Gas detector RTC 1001

for boatsfor shipsfor shipyards

Explorer RTE gas sensor series permit to detect toxic gases in ATEX classified areas. RTE 1001 is an Combustibles gases sensor with range 0-100% LEL and it comes complete with a 4-20mA transmitter in a Exd enclosure. Transmitter PCB board has a local display for service operations and it also has a special circuitry for temperature variation compensation. Main features Electrochemical cell technology Ex Aluminum Container for ¾” NPT cable gland For ATEX 94/9/EC security systems ATEX 94/9/EC INOX Steel Sensor Complete series of accessories Very good price-quality relationship Very fast response Applications Combustibles gas sensor, with ATEX approval, and 4-20 mA transmitter. ISSeP04ATEX036 - II 2GD - EEx d IIC T6 - IP 6X - T85°C - CE. p/n 1001700 The RTC sensors sériés permit the monitoring in continuous, in Exd classified Areas, of combustible gas (%LEL). The die-cast aluminium tin container is done according with the ATEX directions. The interior display, mounted on the transmitter PCB card, get easy the control recurring procedures, check and calibration, through the easy 3 buttons use. The sensors are approved for applications in the naval field: RI.NA, MED e ABS Type approval. These sensors are available in the standard version (VQ-01 type) and also in the "poison résistant" version (VQ-21 type) to endure to the Chemical aggression such as for example solvents.
