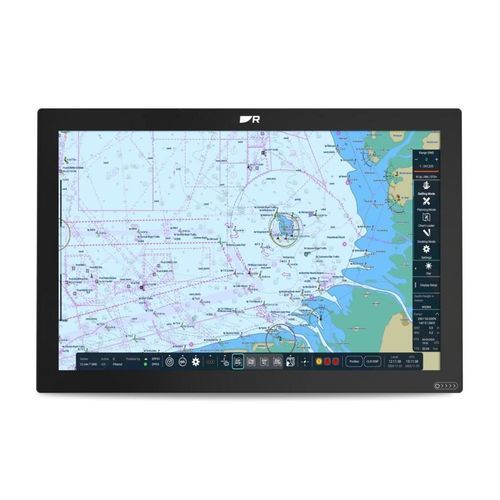

Marine ECDIS Pathfinder 24

shipsfor boatprofessional vessel

Product overview
Type-approved 24" ECDIS designed for maritime navigation with an ergonomic Pathfinder keyboard featuring an integrated marine trackball and a Pathfinder DCU (Data Collection Unit). The package delivers a certified display and interface components for newbuilds and retrofit installations.

Key features

• Built-in processor with integrated 3‑port network switch to minimize equipment footprint for newbuilds and retrofits
• HDMI video output for legacy VDR interfacing or repeater screens
• Multiple mounting options: surface, flush, recessed or deck-stand
• Single-ethernet connection to interface with existing Pathfinder Radar installations
• 24" display certified to IPx6 and IPx7 for harsh marine environments
• Fan-less display design for silent operation and reduced maintenance
• Reliable thermal management for operation in varied weather conditions
• Operable from 12 V or 24 V DC shipboard power systems

Solution includes

• 24" display certified to IPx6 and IPx7 standards
• Pathfinder keyboard with integrated trackball
• Pathfinder DCU data collection unit

Specifications
24" Display
Part Number: E70664-ECDIS
Screen Size: 24"
Resolution: 1920 x 1200 WUXGA
Brightness: 1300 nits
Viewing Distance (m): 0.9
Weight (kg): 11.3
Dimensions (mm): 386.84 x 578.4 x 177.39

Certificate
MED Module B certification approval for Raymarine Pathfinder ECDIS.

Technical specifications

• Part Number: E70664-ECDIS
• Screen Size: 24"
• Resolution: 1920 x 1200 WUXGA
• Brightness: 1300 nits
• Viewing Distance: 0.9 m
• Weight: 11.3 kg
• Dimensions (WxHxD mm): 386.84 x 578.4 x 177.39
• Integrated 3‑port network switch and built-in processor
• HDMI video output for VDR interfacing or repeaters
• Mounting options: surface, flush, recessed or deck-stand
• Interfaceable with Pathfinder Radar via single ethernet connection
• IPx6 and IPx7 certified 24" display
• Fan-less design for low maintenance and quiet operation
• Operable from 12 V or 24 V DC power systems
• Includes Pathfinder keyboard with integrated trackball and Pathfinder DCU data collection unit
• MED Module B certification approval
