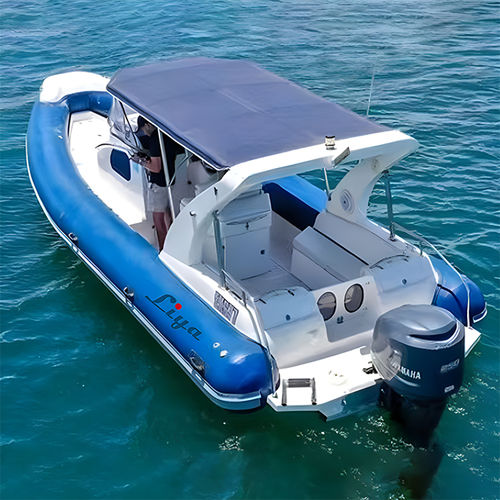

Outboard inflatable boat RIB830

gasolinetwin-enginerigid hull

27 Feet Cabin RIB Boat Tech Specification Data Dimensions (m-ft) Model……………….........................…..HYP830 Length overall……........................….8.30m – 27’ Inside length……….........................…8.10m - 26’ Width overall……….........................…3.00m – 9.9’ Inside width………........................……1.75m – 5.8’ Tube diameter….......................………0.55m-0.60m – 1.8’ V shape degree………........................22° Capacity Capacity…………………….................…....6-12 people Max loading…………………....................1700kg Net Weight ......………….................…...1600kg Airtight compartment……..................8pcs Category……………………...................……C ,B 40ft HQ container…………..................…2pcs Outboard engine data Single engine shaft……………...........……XL 25” Twin engine shaft……………..........….……XL 25” Recommended power……................... 250HP Max recommend power......................300HP(single) /2x150HP(twin) Max power at additional cost….......... 400HP Max speed…………………………..................45Knots (If install maximum hp engine, confirm with factory, very important for boat) Tube Option: 1. French Orca Hypalon/Germany PVC inflatable tube Hypalon tube: made of Orca Hypalon from France, this material has UV resistance, high and low temperature resistance, wear resistance, and can prevent fuel, chemical, water, and air leakage. PVC tube: Made of German PVC, its multi-stage design reduces the vulnerability of punctures. Safety and design: Both use British Leafield valves and segmented airtight seals to prevent leaks. Hypalon wear-resistant strips have been added to protect the cylinder from wear and improve durability and safety. Inflatable tube warranty: 3-5 years 2. Foam filled solid tube The dense foam core provides permanent buoyancy, eliminating the risk of air leakage.
