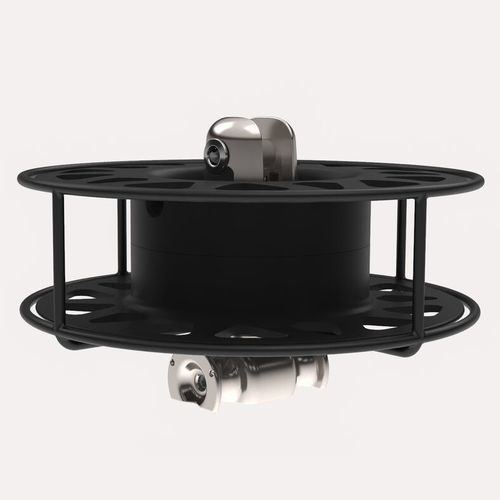

Sailboat sheave NEXSTR10.0X

Description
As a pioneer in ocean racing, Profurl offers the NEXSTR range of stayfurlers designed for offshore racing and fast cruising. The NEXSTR10.X provides lightweight furling performance and simplified handling for headsails. Multiple configurations are available to suit high-performance programs.

Technical description
The NEXSTR10.X is available in a drum version. It is suitable for high-performance boats such as IMOCA and is intended to furl sails like the J2. The unit is designed to work with a structural cable that contributes to mast support. Component optimization reduces weight to improve boat performance and ease sail handling. The drum diameter is calibrated to deliver an optimal torque for reduced furling effort. All NEXSTR furlers integrate the SMART LOCK feature, which locks the textile cable and prevents accidental release; a visual indicator confirms the locked status.

Components

• Includes: drum mechanism
• Terminal: diabolo (sold separately)

Technical information

• Sailing program: Offshore racing, fast cruising
• Sail type: J2
• Structural system: Yes (uses structural cable)
• Mechanism: Drum
• Working load (kg): 10
• Breaking load (kg): 20
• Spool weight (kg): 3000
• Fork width (mm): 22

Characteristics / specifications

• Model: NEXSTR10.X drum stayfurler
• Intended use: Offshore racing and fast cruising
• Compatible sail: J2
• Structural system compatibility: Yes (structural cable interface)
• SMART LOCK: textile cable locking with visual locked indicator
• Optimised drum diameter to reduce furling effort
• Lightweight design through component optimisation to enhance performance
• Includes drum mechanism; terminal sold separately
• Working load: 10 kg
• Breaking load: 20 kg
• Spool weight (as provided): 3000 kg
• Fork width: 22 mm
