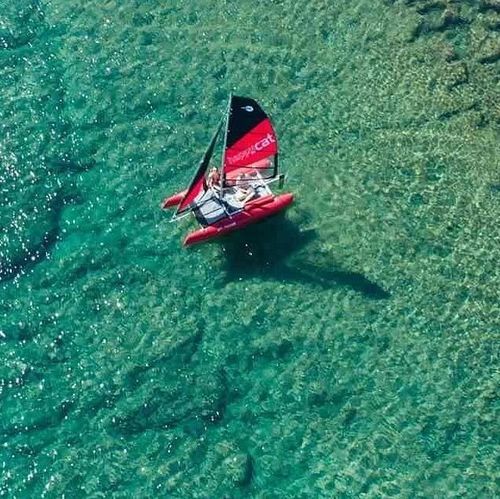

Recreational sport catamaran Happy Cat Neo

instructionalinflatablesingle-handed

Introduction
The compact single‑hander is a fast, agile recreational catamaran designed for quick deployment: ready to sail in 20–30 minutes from a campervan. The NEO is very lightweight and packs down small. Suitable for learning to sail, beginners, teenagers and up to two persons on inland waters. Key features are low weight, small packed size and simple handling.

Compact packing
The two carry bags for the lightweight NEO measure only 185 cm in length and fit easily into a campervan or car.

Innovative hull
Convex hull undersurface increases buoyancy, payload and safety. The Wavepiercer bow reduces resistance at bow and stern and provides a smoother ride with less spray. Hull shape was developed and optimized in towing tank tests; hand‑made from robust Grabner auto‑tire rubber fabric (EPDM).

Rigid profile frame
Profile frame made of saltwater‑resistant anodized aluminium with square plug connections provides torsional stability. The trampoline is tensioned directly into the frame for a clean fit.

Daggerboard & rudder
Long, hydrodynamically optimized aluminium centre daggerboard reduces leeway and is infinitely adjustable in rake; it automatically kicks up on grounding. High‑speed rudder in sturdy aluminium with a servo effect ensures smooth steering and releases automatically on grounding.

Easy assembly
The mast foot joint simplifies stepping and lowering the mast; the mast can be raised by one person. Three‑part mast with square connections forms a professional profile together with the sail; double shrouds and an additional forestay increase safety.

Sails
Square‑head mainsail (6 m²) with boomless, fully battened cut in heavy Dacron for good shape even in light winds; large reinforced windows for all‑round visibility. Headsail (3 m²) reaches to the mast; continuous furling jib simplifies handling.

Standard equipment

• 2 Wavepiercer hulls
• 2 safety valves
• 4‑part profile frame
• Trampoline net with quick tensioner
• Double trapeze harness
• 4 paddle holders
• Halyard bag
• Bow sprit
• 2 tension lines for bowsprit
• 2 insert fittings for crossbar/bow cover
• Centre daggerboard
• Rudder
• 3‑part aluminium mast
• Mast foot joint
• 2 double shrouds
• 2 neoprene shroud protectors
• Headsail 3 m²
• Mainsail 6 m²
• Continuous jib furler
• Forestay
• Traveller
• Mainsheet 3:1
• 2 wind pennants on shrouds
• 2 drillings for engine bracket
• 4 drillings for launching wheels
• 3‑piece carry bag set
• Type plate
• Repair kit
• Valve key
• Overpressure adapter
• Owner's manual with declaration of conformity

Technical data (table)
Overall length x beam: 420 x 205 cm
Trampoline length x width: 170 x 130 cm
Hull length x diameter: 405 x 47 cm
Mast height: 505 cm
Weight: 59 kg
Carry bags: 2 pieces 185 x 30 x 30 cm
Longest single part: 183 cm (bowsprit)
Max persons: 3 adults + 1 child
Payload: 350 kg
Air chambers: 2
Assembly time: 25 min
Operating pressure: 0.3 bar
Material: 1100 dtex EPDM rubber
Headsail / mainsail: 3 m² / 6 m²
Total sail area: 9 m²
Wind strength: Beaufort 4
Engine power: 2.2 kW / 3 HP
Engine weight: 18 kg
Engine shaft length: Long shaft – L
ISO standard: ISO EN 6185 Cat. VI
Design category: C
Colour: red
Recommended use: inland waters / coastal waters (limited seaworthiness)

Characteristics / technical specifications

• Overall length x beam: 420 x 205 cm
• Total weight: 59 kg
• Total sail area: 9 m² (headsail 3 m², mainsail 6 m²)
• Mast height: 505 cm
• Packed size: 2 carry bags each 185 x 30 x 30 cm
• Payload: 350 kg
• Persons: up to 3 adults + 1 child
• Hull material: 1100 dtex EPDM rubber
• Assembly time: approx. 25 minutes
• Operating pressure: 0.3 bar
