Marine door 1600-M Series

for yachtside-hingedtilting

Product Overview

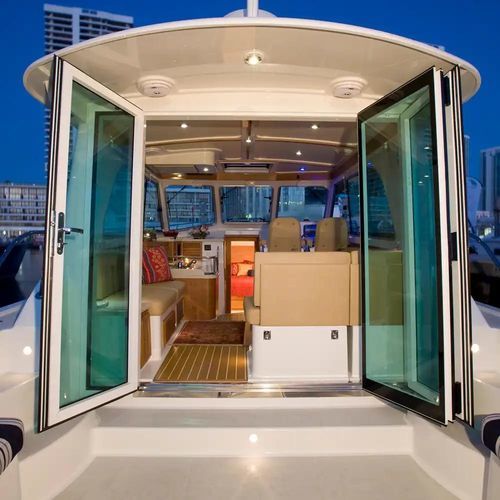

Bomar 1600-M Series Hinged is an all-glass modular door system engineered for marine applications. The M designation indicates a unified modular frame platform that supports multiple opening styles while maintaining the same cut-out and installation process. Designed for vessel integration with emphasis on weather resistance, secure locking options and modular configurability. Manufactured in the USA by Bomar (division of Pompanette).

Standard Features

• Single-platform modular design supporting a broad range of door and window configurations
• Builder-friendly platform enabling aesthetic updates without altering cut-outs or installation methods
• Available configurations: single panel hinged, French/folding doors, bi-folding panels, top-hinged windows, fixed sidelights
• Electric integration options including fully electric 12/24V vertical full-drop sliders

Door Configurations

• Single panel hinged doors
• French / folding panels
• Combo layouts: door & window combos with vertical sliding, top-hinged, folding windows or fixed sidelights

Premium Hardware

• Panel dog options (no dogs or individual aluminum dogs)
• Marine-grade locking: lever handles, key cylinder and thumb-turn
• 316L adjustable hinges

DG Series Glazing

• Direct-glaze glass and ceramic-fritted glazing options
• Custom logos, varied frit and dot-matrix patterns available
• Standard glazing types: tempered, laminated and insulated
• Available tints: clear, grey and green

Additional Options / Personalization

• Locking options including keyless entry
• Marine-grade powder coating finishes
• Bolt-in clamp rings and other builder personalization options

Key Materials

• Extruded aluminum structural frame (in-house extrusions), powder-coated for marine environments
• 316L marine-grade stainless steel fasteners

Door Size Chart (reference)
Part # | Style | PDF Drawing
1600-MBW DOOR/WINDOW | Single with Bi-fold Window | PDF drawing available (1600-M B-Fold-Window-Single-Door-Fixed-Window)
1600-M BIFOLD SWING DOOR | (3) Panel Door – Active Panel + Bi-Fold Panels | PDF drawing available (1600-M-3-Panel-Door-Active-Bi-Fold.pdf)
1600-M DOUBLE SLING | French Door Opening | PDF drawing available (1600-M-French-Door-Opening.pdf)
1600-MLW DOOR/WINDOW | (1) Single Panel & Top Hinged Window Combo | PDF drawing available (1600-M-Single-Panel-Top-Hinge-Combo.pdf)
1600-M Reference Door Drawings | (3) Bi-Folding & Fixed Sidelights | PDF drawing available (1600-M-Multi-Panel-Enclosure-Section.pdf)

Technical specifications

• Series name: 1600-M Series (modular all-glass door system)
• Manufacturer: Bomar (division of Pompanette) — Made in USA
• Frame: Extruded aluminum, powder-coated for marine environments
• Fasteners: 316L marine-grade stainless steel
• Glazing: Tempered, laminated or insulated; direct-glaze and ceramic frit options; tints: clear, grey, green
• Hardware: Marine-grade locking (lever handles, key cylinder, thumb-turn); 316L adjustable hinges
• Configurations: Single panel, French/folding, bi-folding, top-hinged windows, fixed sidelights, vertical sliding (including electric 12/24V options)
• Personalization: Keyless entry, powder coating, bolt-in clamp rings and other builder options
• Warranty: 1 year against manufacturing defects
