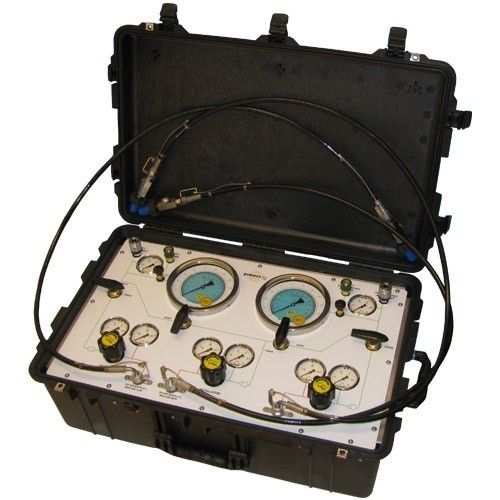

All Pommec controlpanels are assembled with high quality material and is specially designed to be easy to use. To protect the technical part this panel is mounted in a very strong synthethic Pelican case with internal wheels on one side for easy carriage.
- 2x pneumometer (depthgauges) Ø 160mm, 100 or 60 mtr, scale 0,5 msw,class 0,25
- 3x HP air inlet
- 3x HP manometers (one for each line)
- 3x pressure regulators 200-16 Bar (one for each line)
- 5x LP manometer
- 2x LP outlet connection with WP quick coupling(one for each diver)
- 2x Pneumo outlet connection with Hansen quick coupling (one for each diver)
- 'cross over' between the different lines so that at all circumstances all divers will have air
- All conform the IMCA regulations and Lloyd's requirements
- Certificates for the depth gauges, regulators and for the panel overall
- Spare part list with Pommec references
- Manual in English
