Diver surveillance system CP3100

diver surveillance system
diver surveillance system
Add to favorites
Compare this product


Characteristics

Applications
diver

Description

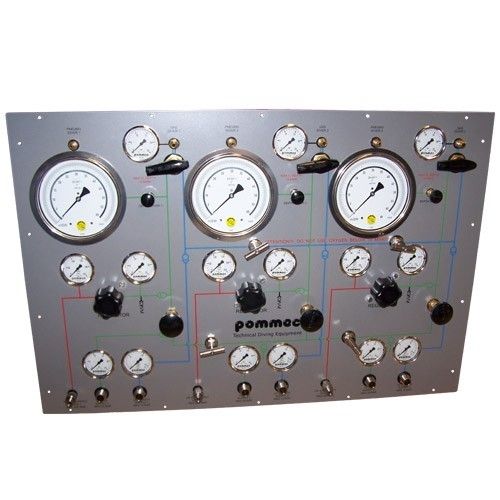

3 diver panel in stainless steel housing with extra O2 supply - All conform the IMCA regulations - 3 pneumometers (depthgauges) Ø 160mm, 100 mtr, scale 0,5 msw - 3 HP gas supply, max 200 Bar - 3 LP gas supply, max 25 Bar - 3 LP oxygen supply, max 15 Bar - 3 HP manometers (one for each HP gas supply line) - 6 LP gas manometers - 3 LP Oxygen manometers - 3 LP Diver outlet manometer - 3 Mixed gas approved high flow regulators 200 Bar > 0-±20 Bar (one for each HP gas supply line) - 3 LP outlet connections (one for each diver) - 3 Pneumo outlet connections (one for each diver) - 'Cross over' between the different lines so that at all circumstances all divers will have air - Mounted in a stainless steel housing - Certificates for the depth gauges, regulators and for the panel overall - Spare part list with Pommec references - Manual

Catalogs

No catalogs are available for this product.

See all of POMMEC BV‘s catalogs
