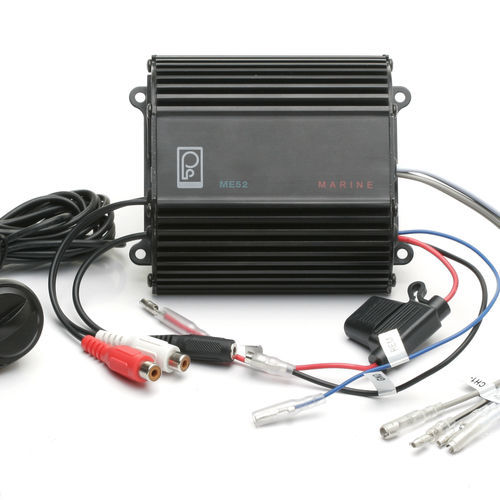

Audio amplifier ME52

marine2-channel

The ME-52 is a compact 2-channel 50-watt audio amplifier with separate volume control. This unit is designed for adding additional speakers to an existing system or as a separate zone amp. It has a compact, waterproof design that allows for flexible mounting possibilities, and makes it simple to expand the audio system capabilities for any installation. Accepts line level or speaker level inputs Separate waterproof Volume control (10 ft lead) Use to add additional loudspeakers to a current audio system Use to provide amplification for a separate audio zone Use as a stand-alone system amplifier for any audio source Speaker Impedance: 2-8 ohm Output Power 2ohm load: 25W RMS/Channel Output Power 4ohm load: 15W RMS/Channel Frequency Response: 20Hz-20kHz Operating Voltage: 13.8V DC (10V-16V Idle Current (no signal): 10mA Maximum Current Draw (full power): 7 amps Remote Wire Current: 4mA Approximate Length: 4 7/8″ (124mm) Approximate Width: 4 3/16″ (106mm) Approximate Height: 1 9/16″ (39mm) Weight: 0.94 lbs. Volume Control Cable Length: 114″ Volume Control Mounting Dimensions: 1″ hole cutout, installation depth 1.5″
