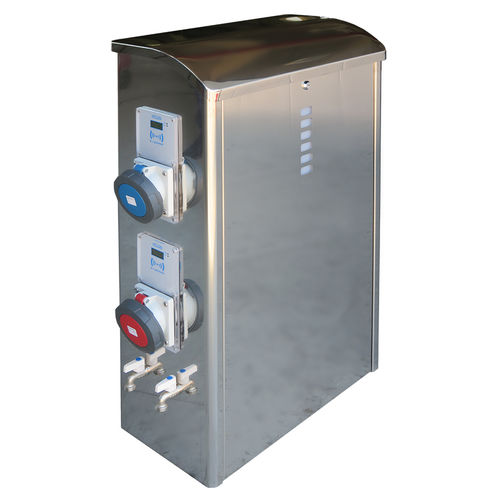

Pedestal with built-in light S1000-XXL
electrical distributionwater supplyfor docks

pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
Add to favorites
Compare this product


Characteristics

Type
with built-in light, electrical distribution, water supply
Installation
for docks
Material
stainless steel
Other characteristics
LED
Amperage

Min.: 16 A

Max.: 250 A

Description

CASING MATERIAL - AISI 316L DIMENSIONS (DXLXH MM) - 300X600X1000 PEDESTAL PROTECTION - IP 56 STANDARD - YES IP 67 - OPT. TERMINAL BLOCKS FOR LINE CONNECTION - Connection through 5 poles in/out terminal blocks for R S T N PE conductors - YES INSTALLABLE TERMINAL BLOCKS - Threaded pin joint from 6 up to 12 mm for cable lugs from 50 to 300 mm2 - YES SOCKETS PROTECTION - IP 67 - YES GENERAL CONFORMITY - Our products are designed, manufactured and tested to meet the regulations that guarantee their compliance with CE Marking standards (EN 60439-1) OPERATING TEMPERATURE - -30°C +70°C IMPACT RESISTANCE - IK 10 ACCESS - Through lockable door FIXING IN PLACE - With 4 x M10 bolts LIGHTING - High efficiency LED PROTECTION - Through fuse or 2A MTD WATER DISTRIBUTION CONNECTION TO WATER MAIN - Through ¾” or ½” female coupling. Through quick coupling for 20mm polyethylene pipes AVAILABLE METERING SYSTEMS ELECTRICITY METER - Progressive with display of kWh used WATER METER - Litre-counter with display of consumption for each user PREPAID SYSTEM - Intelligent electric E-Power socket REMOTE METERING - Through E-Power with fieldbus communication
