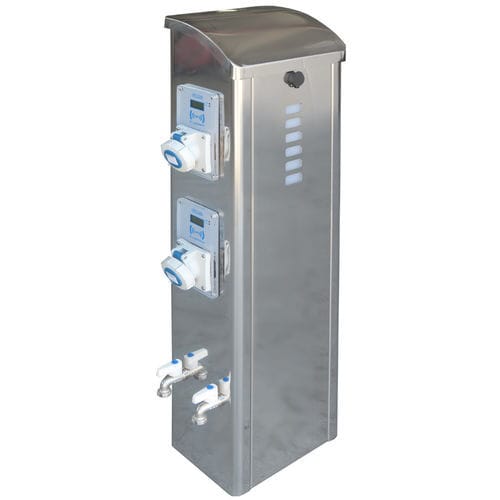

Pedestal with built-in light S1000-L
electrical distributionwater supplyfor docks

pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
Add to favorites
Compare this product


with built-in light, electrical distribution, water supply
for docks
Other characteristics
stainless steel, LED


CASING MATERIAL - AISI 316L DIMENSIONS (DXLXH MM) - 190X265X1000 PEDESTAL PROTECTION - IP 56 STANDARD - YES IP 67 - OPT. TERMINAL BLOCKS FOR LINE CONNECTION - Connection through 5 poles in/out terminal blocks for R S T N PE conductors - YES INSTALLABLE TERMINAL BLOCKS - Threaded pin joint from 6 up to 12 mm for cable lugs from 50 to 300 mm2 - YES SINGLE PHASE SOCKETS (230 VAC 1P+N+PE) - 16A / 32A / 63A - YES 125A - YES THREE PHASE SOCKETS (400 VCA 3P+N+PE) - 16A / 32A / 63A - YES 125A - YES 250A - NO 400A - NO 630A - NO SOCKETS PROTECTION - IP 67 - YES GENERAL CONFORMITY - Our products are designed, manufactured and tested to meet the regulations that guarantee their compliance with CE Marking standards (EN 60439-1) OPERATING TEMPERATURE - -30°C +70°C ACCESS - Through lockable door FIXING IN PLACE - With 4 x M10 bolts LIGHTING - High efficiency LED PROTECTION - Through fuse or 2A MTD WATER DISTRIBUTION CONNECTION TO WATER MAIN - Through ¾” or ½” female coupling. Through quick coupling for 20mm polyethylene pipes CONNECTION TO WATER OUTLETS - ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector AVAILABLE METERING SYSTEMS ELECTRICITY METER - Progressive with display of kWh used WATER METER - Litre-counter with display of consumption for each user PREPAID SYSTEM - Intelligent electric E-Power socket


No catalogs are available for this product.

See all of Plus Marine‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
