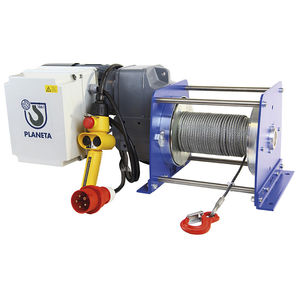

Shipyard winch PCW-H
storagewindingfor docks

shipyard winch
shipyard winch
shipyard winch
Add to favorites
Compare this product


Characteristics

Application domain
for shipyards
Use
storage, winding, for docks, for aquaculture
Drive mechanism
hydraulic drive
Technology
single-drum
Bollard pull

950 kg, 5,250 kg
(2,094 lb, 11,574 lb)

Rope diameter

Max.: 18 mm
(1 in)

Min.: 8 mm
(0 in)

Description

The compact Features: •Capacity from 800 kg up to 5.250 kg •Heavy duty planetary gearbox and air brake •Toothed wheel motor or piston motor •Different speeds •Duty cycle 60 % - 100% •Most compact design •FEM classification M4 (1A m) or higher •Documentation alternatively in German or English •Test book and EC Declaration Options: •Rope and hook completely mounted •Grooved drum •End switch and drum pressure roller •Drum guard and special coatings •Versions for ATEX and ships Description With its gearbox partially inside the cable drum, the PLANETA FD-H cable winch is scarcely any larger than its drive unit, making it the most compact version for heavy-duty industrial applications. Through the use of angled gearboxes, it can even be made more compact on request. Additionally, it does not have a second drum bearing, which makes maintenance much easier. Our production facilities allow us to supply the FD-H within a very short period of time, even after being adapted to suit specific requirements.
