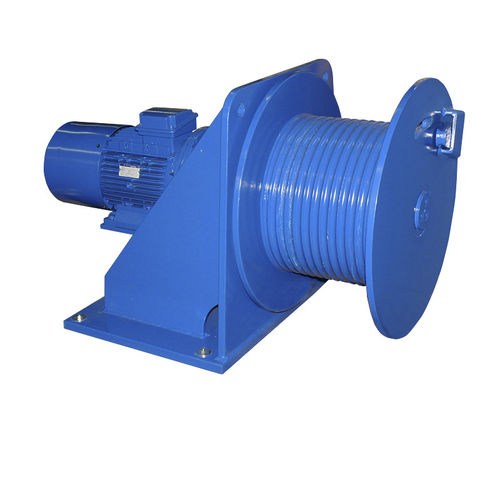

Shipyard winch PCW-E
towingelectric drivesingle-drum

Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum - image - 2
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum - image - 3
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum - image - 4
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum - image - 5
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum - image - 6
Shipyard winch - PCW-E - PLANETA-Hebetechnik GmbH - towing / electric drive / single-drum - image - 7
Add to favorites
Compare this product


Characteristics

Application domain
for shipyards
Use
towing
Drive mechanism
electric drive
Technology
single-drum
Motor power

1.5 kW, 3 kW, 5.5 kW, 11 kW
(2.04 hp, 4.08 hp, 7.48 hp, 14.96 hp)

Voltage

400 V

Bollard pull

950 kg, 5,250 kg
(2,094 lb, 11,574 lb)

Rope diameter

Min.: 8 mm
(0 in)

Max.: 18 mm
(1 in)

Description

•Heavy duty planetary gearbox and aluminium braked motor •Single phase or three-phase motor •Protection class IP54 – 66, duty cycle 60% - 100% •Compact design •FEM classification M4 (1Am) or higher •Documentation alternatively in German or English •Test book and EC Declaration Options: •Rope and hook completely mounted •Grooved drum •End switches and drum pressure roller •Protective drum cover and special coatings •ATEX versions Specially designed for applications where space is at a premium, these compact and lightweight lifting winches are ideally suited for installation on cranes, davits and derricks. The single drum support enables the rope to leave the drum at any angle. The heavy duty planetary drive is partly located within and protected by the drumcore. The large drum diameters ensure a healthy drum to cable diameter ratio and sufficient working length despite the short drums.
