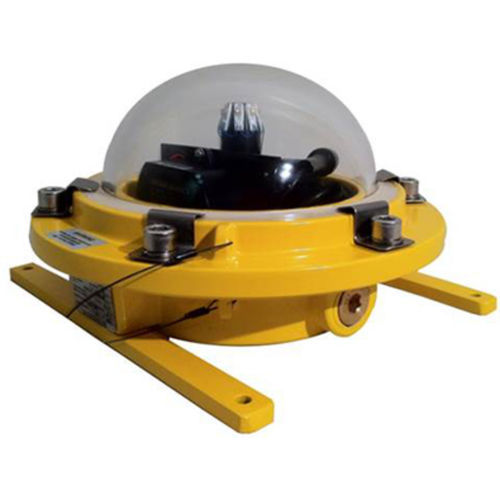

Harbor signalling light FA-165EX 04

LEDredfor helidecks

The FA-165EX 04 Helideck Status Light Repeater is a ZONE 1 rated, red flashing omnidirectional light designed for offshore Oil and Gas Drilling & Production Platforms and FPSO applications. Compliant with CAP 437, the FA-165EX Helideck Status Light consists of an array of high flux LEDs mounted inside an ATEX & IECEx certified flameproof transparent enclosure. Features: Two options for electronic controllers: 100-240 ± 10% VAC 50-60 Hz internal controller 20-30 VDC Helideck Status Light Controller, which can be remotely located up to 500 meters away 40W maximum internal power dissipation Integrated heat pipe eliminates need for cooling fan No moving parts Cover is tempered toughed glass, able to withstand high temperature and impact Base is impregnated, anodized and painted cast marine grade aluminum Stainless steel hardware Four 7mm diameter mounting holes. 229 mm (9”) x 191 mm (7 17/32”) Certifications: EC-Type Examination Certification Certificate No.: ITS10ATEX17055X Coding: II 2 G Ex d IIB T5 Tamb -20°C to +55°C Gb Optional: Tamb -40°C to +55°C Gb Certificate No.: IECEx ITS 10.0041X Coding: Ex d IIB T5 Tamb -40°C/-20°C to +55°C Gb (Dependent on Model) Certificate No.: NCC 17.0084 X (INMETRO – Brazilian Market)
