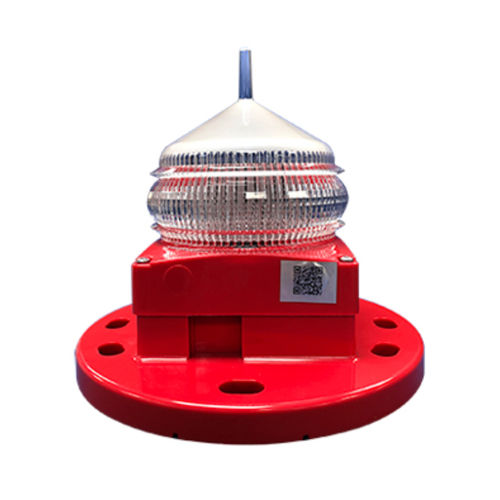

Port signalling light NS35

LEDwhitered

The NS Series Marine Light 3.5 - 7.8 NM is a weather-protected marine lantern with a high intensity LED light source that can be combined with optional GPS synchronization and External IO port. LEDs on a protected metal core PCB for maximum useful life Flexible electronic configurations Use as Green Channel Center, 180° Red Channel Margin, and White Channel Main lights AC/DC input: 120-240 VAC or 12-24 VDC input options Sectored lens: 180° form fitting sectored lens (optional) Zero condensation: designed specifically for inversion with strategically placed vent Rugged, weather-resistant construction materials: High impact resistant polycarbonate for ice, ultraviolet exposure, salt air and seawater spray at a wide range of ambient temperatures High intensity, energy efficient fan beam LED array: Maximum visible range up to 6NM at 0.74T IR Remote: Powering on & off, set / retrieve configuration parameters such as flash pattern, effective intensity, day/night control, etc. USCG approved colors: Single color LED engine - Red, Green or White Longevity - Estimated average service life of 10 years Intensity control: Effective lantern intensity set on Schmidt-Clausen method Flash character control: 256 programmable flash characters and 2 custom flash characters Day/Night transition level settings: Programmable for active at all times or only after sunset. Day / Night level settings (sunset / sunrise transition) can be field programmed Calendar control - Programmable season on/off date Input protection - Lantern power input is reversed polarity protected for field repair Storage mode - Automatic storage mode with adjustable automatic wake up Programmable sleep and test modes
