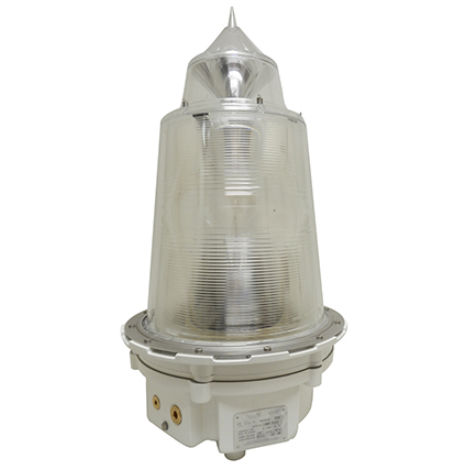

Harbor signalling light FA-250EX

tungsten halogenacrylic

Variety of non‐hazardous certified internals can be used due to the nature of the flameproof, IP‐67 enclosure approval M20 or M25 quad cable entries remove the need for additional junction boxes Lens cover and the cast‐aluminum base are the most durable and longest life system in use Smooth acrylic lens cover, the FA‐250EX lantern eliminates the buildup of fillets of moisture, dust, salt spray, raindrops and other contaminants on the internal Fresnel lens prisms When fitted with an APCL‐Series FLASHCHANGER®, the FA‐250EX lantern becomes the most versatile product on the market Configured as a 10‐mile, Morse U light, the lantern will accept an input voltage of 12, 18, 24 volts and, with an internally mounted DC‐DC converter, 130VDC and operate a 12 volt, 2000 hour 35 watt tungsten halogen lamp Low maximum surface temperature of the fixture during operation; the 10‐mile lantern has a maximum of 100°C (T5) at Tamb of 40°C where competing units are 200°C (T3) Variations: FA‐250EX932: APCL‐10 Six‐place FLASHCHANGER® up to 150 watts FA‐250EX952: APCL‐5 Six‐place FLASHCHANGER® up to 60 watts Certificates: EC-Type Examination Certificate Certificate No.: Intertek ITS10ATEX17118X Coding: II 2 G Ex d IIB T4/5/6 Certificate No.: IECEx ITS 10.0040X Coding: Ex d IIB T4/5/6 Tamb -20°C/-40°C to +40°C/+55°C Gb (Dependent on Model) Certificate No.: NCC 17.0083 X (INMETRO – Brazilian Market) Coding: Ex d IIB T6…T4 Gb Epsilon IP Certificate Number: 04TEST1386
