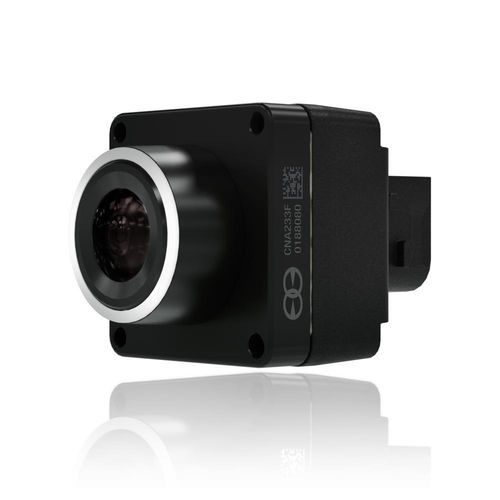

Low-light video camera EMOS II

for collision avoidanceprofessionalhigh-definition

Overview
The Orlaco EMOS II camera is a rugged and compact Ethernet camera built for vision solutions on vehicles and machinery. This high-definition digital camera delivers real-time, crystal-clear images, ensuring the driver has exceptional visibility of their environment.

Superior Image Quality
The EMOS II leverages BroadR-Reach (100BASE-T1) technology, ensuring ultra-low latency (25ms) image transmission. Its highly sensitive image sensor delivers superior image quality and vibrant colors in all conditions, including light, dark, and rainy environments. With a 1.3-megapixel resolution and high dynamic range (HDR) capability, the camera is well-suited to effectively support AI applications.

Camera for Built-In Solutions
Designed for seamless integration into vehicle bodies, the EMOS II features an HDSCS automotive connector for reliable power and data interfacing. Its compact cube-shaped design allows OEMs to install the camera in locations to eliminate blind spots. The camera is compatible with Orlaco ELED monitors and can be integrated into third-party monitors or HMIs. The design is also suitable for aftermarket installations and supports mounting via a special bracket for easy installation.

Reliability
Built to withstand harsh environmental conditions and heavy use, the EMOS II is shock- and vibration-resistant, dust-proof and water-protected (IP67, IP69K). It operates reliably in a wide temperature range and uses industrial-grade components suitable for heavy-duty applications.

Caractéristiques / Spécifications techniques

• Types: 120º, 180º
• Input voltage: 12/24V/DC
• Power consumption: <2W
• Connector: Integrated TE Connectivity HDSCS automotive connector system for power and data interface
• Vibration resistance: 50G
• Sensor: 1.3 megapixels (1280 x 1080) high dynamic range (HDR) image sensor
• Data signal: 100Mb/s 100BASE-T1 (BroadR-Reach)
• Protection class: Watertight IP67, IP69K
• Operating temperature: -40ºC to +85ºC <br>-40ºF to +185ºF
• Housing: Anodized Aluminium & PC/ABS with integrated connector
• Weight: 0,92 kg
• Dimensions: Cube-shaped camera 42 x 42 x 65mm
• Compliance: In compliance with relevant EMC- and Automotive directives
