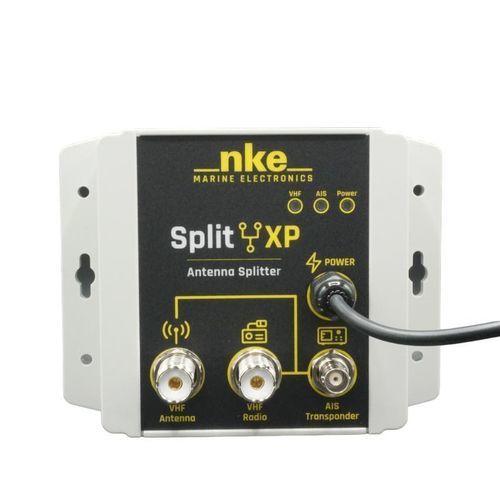

VHF antenna splitter SplitXP

AISfor sailboatsfor racing sailboats

VHF Antenna Splitter – one antenna for many uses! The VHF antenna splitter is a must-have accessory for all sailboat owners wishing to connect both a fixed VHF and an AIS transponder to a single VHF antenna. Our SplitXP is therefore a perfect match for our GuardXP transponder. Why add a splitter to your nke AIS system? - Simplified installation: no need for a second antenna or additional cables - Full AIS compatibility: designed to work with Class B AIS transponders (transmit and receive) - Built-in protection: automatic priority for VHF radio, and AIS mute while transmitting to avoid interference. This splitter is perfect for sailboats, catamarans, racing boats that already have a masthead VHF antenna and are looking for a simple, cost-effective solution for integrating an AIS system into their existing installation. This small box will give you a major safety advantage without compromising on performance! VHF antenna splitter – SplitXP [PF000350] Specifications - Dimensions (H x L x D): 161 x 121 x 38 mm - Weight: 405 g (with power supply cable of 110 cm) - Power supply: 12 or 24 VDC - Cable: Ø 5 mm, 2 conductors, 110 cm length - Electric power: 1.8 W - AIS transponder port: Female BNC connector, Input impedance: 50 Ω - VHF radio port: Female connector PL259, Input impedance: 50 Ω - Operating frequency: From 156,000 to 163,425 MHz - Waterproofing: IP54 water rating (dust-proof and resists splashing water from any direction) - Temperatures: Operating temperature: -10°C to +50°C, Storage temperature: -20°C to +60°C Features - Accessories included: - 1 x 50 cm PL259-PL259 cable for connection to the VHF radio - 1 x 50 cm BNC-BNC cable for connection to the AIS transponder (GuardXP) - Equipment not included: - 1 VHF antenna with its cable fitted with a PL259 plug - 4 M4 screws to secure the box Product type: VHF antenna splitter Reference: PF000350
