Boat gangway 1234 series

self-supportingopeningfolding

Description

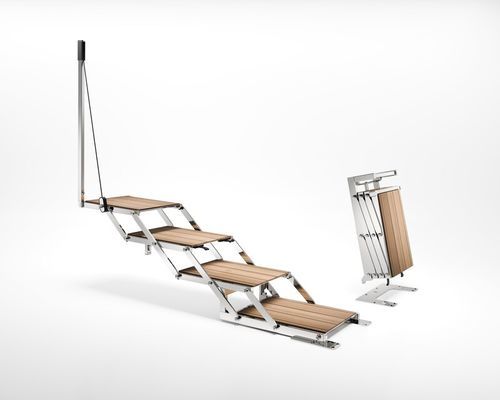

The 4-stage manual extendable gangway is manufactured in stainless steel 316L with customizable decking. It is a self-supporting, removable and transportable system that can remain mounted during navigation. When closed it occupies minimal space (approx. 500 mm) and, once extended, offers the same usability as a traditional 2 m gangway.

Main features

• 4-stage manual extendable system
• Structure material: stainless steel 316L
• Decking options: EVA foam, synthetic teak or without covering
• Self-supporting system; does not require quay support
• Easily removable from the mounting for transport or storage (indicative weight: 30 kg)

Accessories included and functions
Included in the supply you will find:

• a set of removable lines which, fixed to the side of the gangway, allow opening and closing from the dock to increase safety during mooring
• a rectangular tube stanchion for safety installable on the right or left side

Optional accessories

• Additional stanchion (code 123_CND) to have a handrail on both sides
• High-quay accessory (code 123_BPI) that allows an intermediate position, increasing reachable height at the expense of maximum length
• Dedicated storage plates for stowage: 123_270RM (for 270 mm wide version) and 123_350RM (for 350 mm wide version)

Fixing systems
The gangway can be installed using two fixing systems: an anchoring plate (practical and quick) or three separate bushes (more precise installation and discreet, elegant result, perfectly integrated with the deck).

Technical notes
Mounting screws are not included; use A4 fasteners suitable for the type of support to ensure correct installation.

Availability
Available in approximately 20 days.

Drawing
Patented drawing.

Features / technical specifications

• Material: stainless steel 316L
• Number of stages: 4
• Proposed widths (product options): 300 mm, 380 mm
• Decking finishes: EVA foam; synthetic teak (various colors shown); without covering
• Available attachment systems: Plate; 3 Bushes
• Indicative weight: 30 kg
• Closed length: approx. 500 mm
• Open length: comparable to a traditional 2 m gangway
• System: self-supporting, removable and transportable
• Optional accessories: stanchion (cod. 123_CND), high-quay accessory (cod. 123_BPI), storage plates (123_270RM, 123_350RM)
