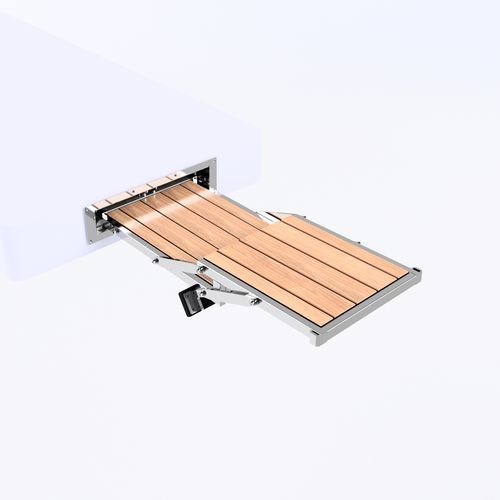

Boat gangway 12_IN

for yachttelescopicretractable

Product description
The 12_IN retractable manual gangway couples the construction features and quality of the 123 series gangway, but is designed for recessed installation. Made of 316L stainless steel, it consists of two hinged sections and the entire assembly slides on guides inside the box, disappearing completely when stowed. When not in use, the gangway remains hidden in its housing, revealing only an elegant, polished stainless steel front panel integrated into the stern line. This solution combines functionality, clean aesthetics and minimal space while maintaining the same practicality and robustness as the 123 series.
Thanks to the new belt system, opening and closing the gangway is simple, smooth and always under control, without the need for motors or electrical systems. This mechanism guarantees safety and reliability over time, assuring the lightness and convenience of a fully manual operation.
Unlike the 123 and 1234 gangways, which stay on the platform, the 12_IN is not removable but offers the convenience of a gangway that’s always ready for use and completely invisible when closed. The great advantage of this configuration is a completely free aft platform, ensuring maximum space during navigation or docking. The external flange of the 12_IN casing has the same dimensions as the model 2375 retractable ladder, allowing the ladder and gangway to be installed in pairs—one on the left and one on the right—achieving perfect aesthetic symmetry when closed.
Included in the supply is a rectangular safety stanchion that facilitates the first step from the dock to the gangway; it can be installed either on the right or left side. For particularly high docks, the optional accessory 123_BPI is available to allow the gangway to be used in an intermediate position, increasing reachable height while slightly reducing maximum length.
We offer the gangway in versions with a walking surface covered in EVA foam (12_INF), in synthetic teak (12_INL), or without a covering for customization to match your deck (12_IN).
Availability: 20 days

Variants / Prices
ART | FEATURES | COVER | LIST PRICE | WEB PRICE
12_IN | 2 steps built-in gangway | No cover | €3.692,94 | €2.954,35
12_INL | 2 steps built-in gangway | Synthetic teak | €3.355,00 | €2.684,00
12_INF | 2 steps built-in gangway | Eva Foam | €3.556,30 | €2.845,04

Technical specifications

• Type: Manual telescopic built-in gangway
• Material: AISI 316L stainless steel
• Configuration: Two hinged sections sliding on internal guides (fully retractable into housing)
• Installation: Recessed installation (not removable)
• Walking surface options: No cover (customizable), EVA foam (12_INF), Synthetic teak (12_INL)
• Steps: 2 steps
• Front panel: Polished stainless steel, integrated into stern line
• Operating system: Manual belt system (no motor/electrical required)
• Included: Rectangular safety stanchion (installable left or right)
• Optional accessory: 123_BPI for intermediate position (increases reachable height)
• Casing compatibility: External flange compatible with model 2375 retractable ladder for paired installation
• Availability: 20 days
