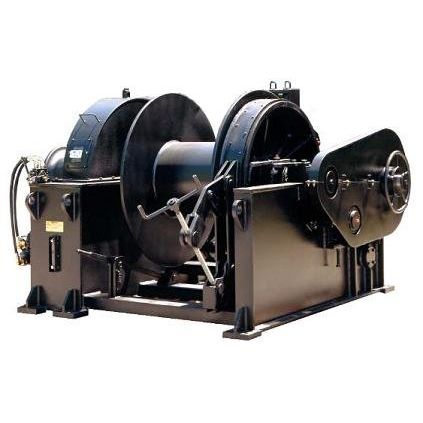

Ship winch

anchorhydraulic drivesingle-drum

Features: - Fabricated steel construction. - Three coat zinc and epoxy paint system for complete marine environment protection. - Electric or hydraulic power. - Jaw clutched drum. - Single or double warping heads. - Drum to spool 1200' of 1 3/4 inch diameter wire rope. - Two 15 inch diameter steel gypsy heads. - Hydraulic motor with fail safe motor brake. - 4-way control valve mounted and piped on the winch. - Manually operated band brake with stainless steel brake and steel hand wheel. - Lever operated machined jaw clutch. - Spur gear reduction operating in oil bath. - Level wind available. - Drum band brake and holding dog. - Drum capacity and line pull to meet customer requirements. - Wire rope level wind for uniform lay of wire on the drum. - Ratchet and pawl type holding dog on the drum. - Rated to lift a 5020 lbs. anchor from 30 fathoms at 30 fpm. - Rated line pull 20,000 lbs.
