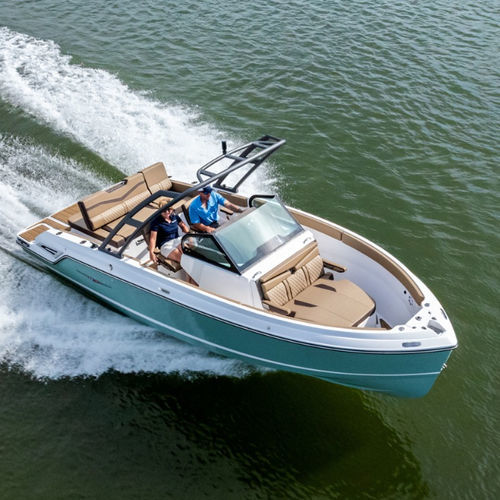

Sterndrive runabout ELITE 23 SD

gasolineopendual-console

Overview
The ELITE 23 SD brings Monterey’s Elite Series into the 23-foot class, combining a driver-focused helm, efficient hull geometry and a versatile cockpit layout suited for day boating, watersports and light cruising. The model offers a molded swim platform, integrated storage and manufacturer-selected standard systems for safe, practical operation.

Highlights

• LOA (with swim platform): 23 ft 7 in (7.20 m)
• Beam: 8 ft 6 in (2.59 m)
• Fuel Capacity: 90 GAL (340 L)
• Max Horsepower: 300 HP (224 kW)

Specifications

• Deadrise: 21°
• Draft (engine up): 21 in (0.53 m)
• Draft (engine down): 36 in (0.91 m)
• Water Capacity: 10 GAL (37.8 L)
• Waste Capacity: 11 GAL (41.6 L)
• Bridge Clearance w/Arch: 8 ft 2 in (2.49 m)
• Max Persons w/Gear & Motor: 2250 LBS (1021 kg)
• Dry Weight: 5000 LBS (2268 kg)

Standards & Options (selected items)

• Head
  • Flooring, marine mat — Standard
  • Toilet (Porta-Potti) — Standard
• Cockpit
  • 45 qt carry-on cooler — Standard
  • LED RGB courtesy lighting — Standard
  • Stainless steel drink holders (6) — Standard
  • Fiberglass cockpit liner with non-skid drainage — Standard
  • 12V/USB outlets — Standard
  • Stereo, Fusion Apollo RA210 with JL 6.5" speakers & LED lights — Standard
• Electrical System
  • Battery switch dual with two battery trays — Standard
  • Digital switching with LED soft keypad — Standard
• Engine Compartment
  • Automatic bilge pumps — Standard
  • Bilge compartment lighting — Standard
  • Fiberglass engine hatch w/electric actuator — Standard
  • Gel coated bilge compartment — Standard
• Helm
  • Compass — Standard
  • Instrumentation, Mercury SmartCraft — Standard
  • Wireless charger, 12V/USB outlets — Standard
  • Power assisted steering with tilt wheel — Standard
• Hull & Deck
  • Barrier coat, vinylester — Standard
  • Stainless steel cleats (6) and hardware — Standard
  • NMMA certified — Standard
  • Molded swim platform with telescoping recessed ladder & hatch — Standard
• Seating
  • Aft sunpad with articulating backrest — Standard
  • Bow lounge with fold-down armrests — Standard
  • Helm seats with swivel base, slider & flip-up thigh rise — Standard
• Optional equipment (selection)
  • Battery charger with deck plug — Optional
  • Aft seat cover, console & helm covers — Optional
  • Cockpit grill, Seadek inlay, docking lights — Optional
  • Wakeboard tower, folding with aft bimini — Optional
  • Underwater RGB LED lights — Optional
  • Simrad NSX Ultra Wide 15" chartplotter w/transducer — Optional

Performance (selected engine options)

• 4.5L DTS — 250 HP — Bravo III — Prop: TBD — Max MPH: TBD — GPH @ cruise: TBD
• 6.2L DTS — 300 HP — Bravo III — Prop: TBD — Max MPH: TBD — GPH @ cruise: TBD
• 4.5L CAT DTS — 250 HP — Bravo III — Prop: TBD — Max MPH: TBD — GPH @ cruise: TBD
• 6.2L CAT DTS — 300 HP — Bravo III — Prop: TBD — Max MPH: TBD — GPH @ cruise: TBD

Technical specifications

• LOA w/swim platform: 23 ft 7 in (7.20 m)
• Beam: 8 ft 6 in (2.59 m)
• Deadrise: 21°
• Draft (engine up/down): 21 in / 36 in (0.53 m / 0.91 m)
• Fuel: 90 GAL (340 L) • Water: 10 GAL (37.8 L) • Waste: 11 GAL (41.6 L)
• Bridge clearance w/arch: 8 ft 2 in (2.49 m)
• Max persons w/gear & motor: 2250 LBS (1021 kg)
• Dry weight: 5000 LBS (2268 kg) • Max power: 300 HP (224 kW)
• Standard features include LED courtesy lighting, Fusion stereo, digital switching, power assisted steering, molded swim platform with ladder, stainless steel hardware, NMMA certification
