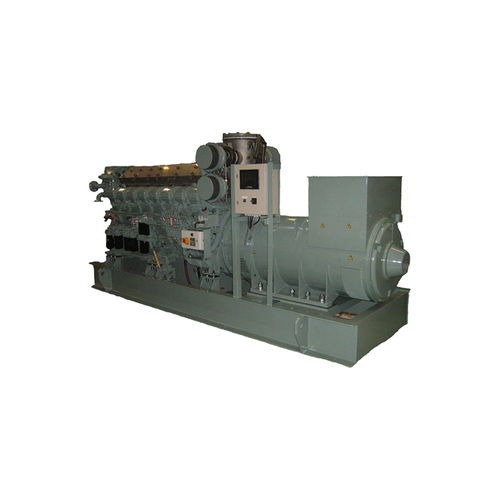

Diesel generator set MAS 1795
for ships60 HzIP23

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for ships
Frequency
60 Hz
Protection class
IP23
Pollution control standard
Tier 3
Options and accessories
with alternator
Output power

1,070 kW, 1,485 kW, 1,633 kW
(1,454.8 hp, 2,019 hp, 2,220.3 hp)

Power in kVA

2,041 kVA
(2,774.99 hp)

Voltage

440 V

Rotational speed

1,800 rpm
(11,310 rad.min-1)

Displacement

65 l
(17 gal)

Number of cylinders

16 unit

Length

4,880 mm
(192.1 in)

Width

1,725 mm
(67.9 in)

Height

2,280 mm
(89.8 in)

Description

Perfectly engineered and reliable Mitsubishi Diesel Engines and integrated with Europe’s best alternators, offer you the best longterm solution for your vessel’s power needs. Each generator set is assembled at our own factory in France, adapted to your requirements, fully tested and ready for installation onboard. Its efficient and fail-free operation makes the generator set the perfect choice where durability and top performance are a must. Individual cylinders heads, large inspection and maintenance covers on both sides of the engine enable easy access to all main parts. Turbochargers, injection pumps and water pumps have a fully integrated lubricating oil system with changeover lubricating oil filters. Compact in design, the generator set occupies less space in the engine room and its good accessibility makes service and maintenance easy. Benefits Reliable Compact in size Easy access points Commonality of parts across the MHIET engine models, simplifies spare part management Applications Ferries Tanker Cruise Generator set model - MAS 1795 Dry weight (kg) - 14000 Dimensions - L x W x H (mm) - 4880 x 1725 x 2280 Rating - Prime Output (kVA) (power factor 0.8) - 2041 Output (kWe) - 1633 Engine speed (rpm) - 1800 Frequency (Hz) - 60 Voltage (V) - 440 Emission - IMO Tier II
