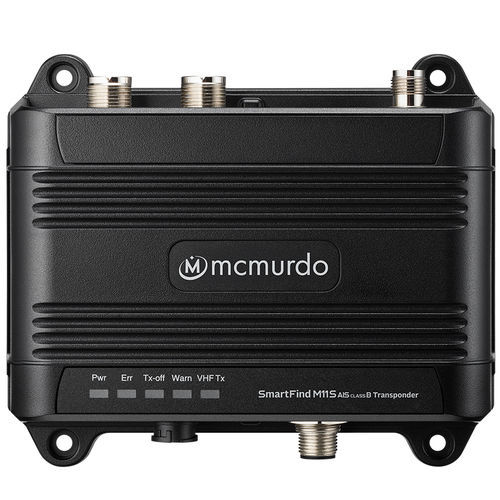

Yacht AIS McMurdo SmartFind M11

for boatfor pleasure boatsfor sailboats

Product overview
The McMurdo SmartFind M11 Series comprises Class B AIS transponders designed for recreational and work vessels requiring compact AIS transmit/receive capability with integrated GNSS. Models include the M11 and the M11S, the latter featuring an integrated VHF antenna splitter for single-antenna installations.

Key features

• Class B CSTDMA transmit and receive
• External GNSS patch antenna (3 m cable) included
• Integrated VHF antenna splitter option (M11S) for single-antenna use
• NMEA 0183 and NMEA 2000 connectivity
• USB-C interface for configuration and data
• Environmental rating IP68 suitable for marine installation

Technical specifications

• Models: McMurdo SmartFind M11; McMurdo SmartFind M11S
• Part numbers: M11 = 21-200-003A; M11S = 21-200-004A
• AIS classification: 2 W CSTDMA (Class B)
• GNSS antenna: 3 m GNSS patch cable (supplied)
• Wi‑Fi: No
• Integrated VHF splitter: M11 = No; M11S = Yes
• Interfaces: NMEA 0183, NMEA 2000, USB-C
• Power supply: 12 V / 24 V DC
• Environmental rating: IP68
• Dimensions: 151.25 x 128.6 x 50 mm
• Weight: 400 g

Compatibility & integration

• Interfaces with chartplotters and multifunction displays via NMEA 0183 / NMEA 2000
• USB-C for direct connection to PCs and configuration tools
• M11S allows sharing a single VHF antenna between AIS and VHF radio

Applications & installation

• Intended for leisure craft, sailing yachts, motor cruisers and workboats
• Supplied external GNSS antenna simplifies siting and installation
• M11S suited to vessels with limited antenna mounting options
• Operates from standard 12 V or 24 V onboard power

Contents of delivery

• AIS transceiver (M11 or M11S)
• GNSS patch antenna with 3 m cable
• Wiring harness and mounting hardware
• User manual and product datasheet
