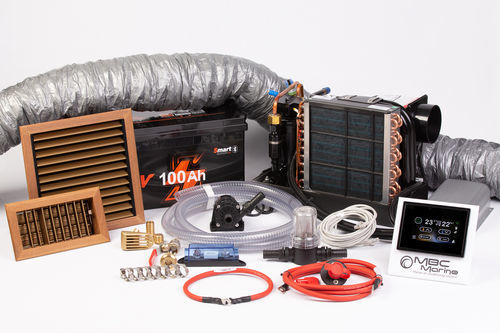

Boat air conditioner SDC 24-12000

stand-alone

ALL IN ONE COMPACT. EFFICIENT. SMART. AND WHISPER QUIET... EVERYTHING YOU NEED IN ONE BOX! For the quick and easy installation of the 24V Battery supplied air conditioning unit! At the heart of the system is a LiFePO4 24V 100Ah battery, which provides up to 10-12 hours for the 12000 BTU model – without the need for shore power or a generator – in ECO mode. A SMART display is available as an optional add-on, offering a modern and user-friendly interface for system control. With the built-in ECO mode, you can achieve up to 40% energy savings, making the system even more efficient for off-grid and battery-powered setups. And if the standard plastic supply and return air grilles don’t match the interior style of your boat, choose the Woodline Edition, which includes real teak or oak grilles – for perfect visual harmony and a premium look. COMPACT SOLUTION AND MAXIMUM COMFORT AT SEA. Specifications of The A/C Unit Unit Parameters SDC 24-12000 Power Supply Direct Current DC24V COOLING Capacity BTU/h 12000 Rated power kW 0.72 Rated current NORMAL mode * A 18-20 Rated current ECO * A 10-14 HEATING Capacity BTU/h 13000 Rated power kW 0.8 Rated current NORMAL mode * A 40-42 Rated current ECO mode * A 22-24 Seawater flow m³/h 0.9 Air flow m³/h 450 Dehumidification L/h 1.2 Noise level dB(A) 50 Width mm 480 Height mm 300 Depth mm 285 Weight kg 23 Refrigerant type R134A Air duct Diameter mm 125 Sea water pipe Diameter mm 16 * Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions. Standard package Quantity Description 3 meters Thermally insulated air duct 1x MBC SDC 24-12000 air conditioning unit (12000 BTU, 24V DC) 1x MBC AMPS01 seawater strainer 1x MBC DC 5624F brushless circulation pump 1x 1/2” seawater intake fitting 1x 1/2” ball valve 1x 200×100 mm plastic supply air grille 1x 1/2” seawater discharge fitting 2x 2.5 meter 35mm² power supply cables with cable lugs 1x 200×300 mm plastic return air grille 1x 40A fuse 1x Main switch 1x Fuse box 3 meters Armoflex seawater pipe 1x 1/2” female hose connector 2x 1/2” male hose connector 7x W4 16-25 stainless steel hose clamps Optional Packages: Woodline Edition: Includes real teak or oak grilles for a premium look. Smart Pack: Optional SMART display for modern, user-friendly system control and up to 40% energy savings in ECO mode. Typical installation includes: Scoop type Thru-Hull Ball valve Sea Water Strainer Sea water pump A/C unit Return Air Grille Flexible duct Duct Ring Transition Box Supply Air Grille Control Box Starting Booster Outlet Sea Water Outlet Drain Outlet Key Features: 24V Battery supplied air conditioning unit LiFePO4 24V 100Ah battery for up to 10-12 hours operation (ECO mode) Optional SMART display for system control ECO mode for up to 40% energy savings Optional Woodline Edition with real teak or oak grilles Technical Specifications: Cooling Capacity: 12000 BTU/h Heating Capacity: 13000 BTU/h Rated Power (Cooling): 0.72 kW Rated Power (Heating): 0.8 kW Rated Current (Normal/ECO, Cooling): 18-20A / 10-14A Rated Current (Normal/ECO, Heating): 40-42A / 22-24A Seawater Flow: 0.9 m³/h Air Flow: 450 m³/h Dehumidification: 1.2 L/h Noise Level: 50 dB(A) Dimensions (W x H x D): 480 x 300 x 285 mm Weight: 23 kg Refrigerant: R134A Air Duct Diameter: 125 mm Sea Water Pipe Diameter: 16 mm
