Boat air conditioner SDC 24-7000

stand-alone

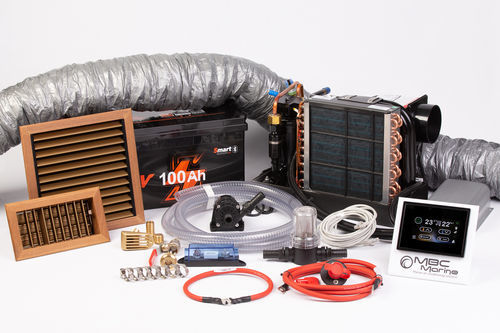

ALL IN ONE COMPACT. EFFICIENT. SMART. AND WHISPER QUIET... EVERYTHING YOU NEED IN ONE BOX! For the quick and easy installation of the 24V battery-supplied air conditioning unit! Among the 12V and 24V options, this is the most efficient package, delivering the best performance and runtime. At the heart of the system is a 24V 100Ah LiFePO4 battery, providing up to 12–18 hours of operation for the 7,000 BTU model in ECO mode – without the need for shore power or a generator. A SMART Display is available as an optional add-on, offering a modern and user-friendly interface for system control. With the built-in ECO mode, you can achieve up to 40% energy savings, making the system even more efficient for off-grid and battery-powered applications. If the standard plastic supply and return air grilles don’t match the interior style of your boat, choose the Woodline Edition, which includes real teak or oak grilles – ensuring perfect visual harmony and a premium look. COMPACT SOLUTION MAXIMUM COMFORT AT SEA. Unit Parameters SDC 24-7000 Power Supply: Direct Current DC24V COOLING Capacity: 7000 BTU/h Rated power: 0.56 kW Rated current – NORMAL mode: 9-11 A Rated Current – ECO mode: 7-9 A HEATING Capacity: 8500 BTU/h Rated power: 0.6 kW Rated current – NORMAL mode: 18-20 A Rated current – ECO mode: 10-12 A Seawater flow: 0.6 m³/h Air flow: 350 m³/h Dehumidification: 1.0 L/h Noise level: less than 50 dB(A) Width: 400 mm Height: 280 mm Depth: 240 mm Weight: 18 kg Refrigerant type: R134A Air duct Diameter: 100 mm Sea water pipe Diameter: 16 mm Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions. Standard package includes: - 1x MBC SDC 24-7000 air conditioning unit (7000 BTU, 24V DC) - 1x MBC DC 5624F brushless circulation pump - 1x 24V LiFePo4 100 Ah Battery with Bluetooth connect - 1x 24V 20A battery charger - 2x 2.5m 16mm² power supply cables with cable lugs - 1x fuse box - 1x 40A fuse - 1x main switch - 1x 1/2” seawater intake fitting - 1x 1/2” ball valve - 1x MBC AMPS01 seawater strainer - 3x 1/2” female hose connector - 1x 1/2” seawater discharge fitting - 7x W4 16-25 stainless steel hose clamps - 3 meters Armoflex seawater pipe - 1x 100×100 mm plastic supply air grille - 1x 200×300 mm plastic return air grille - 3 meters thermally insulated air duct Optional packs: - Woodline Edition: Real teak or oak grilles for premium look. - Smart pack: SMART display for modern, user-friendly control and up to 40% energy savings in ECO mode. Typical installation components: - 1 Scoop type Thru-Hull - 2 Ball valve - 3 Sea Water Strainer - 4 Sea water pump - 5 A/C unit - 6 Return Air Grille - 7 Flexible duct - 8 Duct Ring - 9 Transition Box - 10 Supply Air Grille - 11 Control Box - 12 Starting Booster Outlet - 13 Sea Water Outlet - 14 Drain Outlet Technical Specifications: - Power Supply: DC24V - Cooling Capacity: 7000 BTU/h - Heating Capacity: 8500 BTU/h - Rated Power (Cooling): 0.56 kW - Rated Power (Heating): 0.6 kW - Rated Current (Normal/ECO, Cooling): 9-11A / 7-9A - Rated Current (Normal/ECO, Heating): 18-20A / 10-12A - Seawater Flow: 0.6 m³/h - Air Flow: 350 m³/h - Dehumidification: 1.0 L/h - Noise Level: less than 50 dB(A) - Dimensions (W x H x D): 400 x 280 x 240 mm - Weight: 18 kg - Refrigerant: R134A - Air Duct Diameter: 100 mm - Sea Water Pipe Diameter: 16 mm
