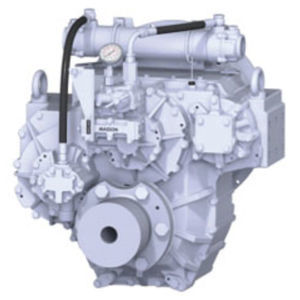

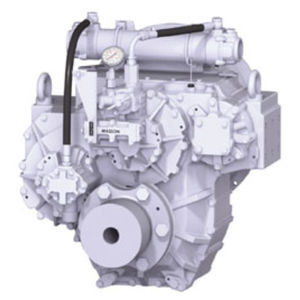

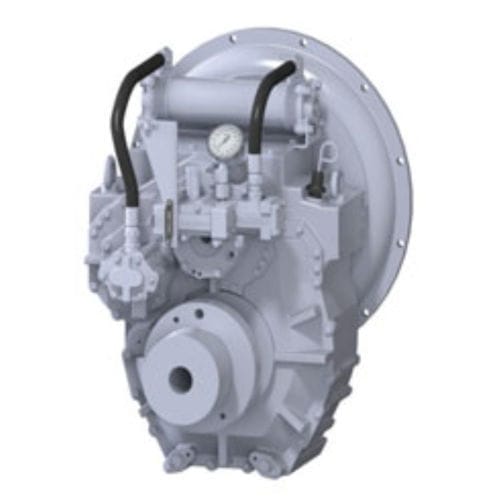

Marine reduction gearbox ML 90
transmissionwith hydraulic clutch

marine reduction gearbox
marine reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
marine
Applications
transmission
Other characteristics
with hydraulic clutch
Power

267 kW (363 hp)

Rotational speed

3,000 rpm (18,850 rad.min-1)

Description

Robust design and easy onboard maintenance.Withstands various applications: pleasure, light, medium and continuous duty.Fully works tested, reliable and simple to install.Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.Case hardened and precisely ground gear teeth for long life and smooth running.Robust cast iron casing for direct or remote mounting.Emergency “get home” capability.Design, manufacture and quality control standards comply with ISO.Suitable for twin installation with 100% rated power in ahead and astern condition. Standard Equipment Dual stage input coupling.Propeller shaft flange and coupling bolt sets.Oil cooler complete with fittings and flexible hoses.Control cable bracket and Clamp parts for connection of the push-pull cable.Mounting brackets (Plate Type for welding).Standard Input Rubber. Option Engine-matched torsional coupling.Trolling valve for slow-speed drive.D-Trolling valve.Mounting brackets ( L Shape ).Electric shifting valve.
