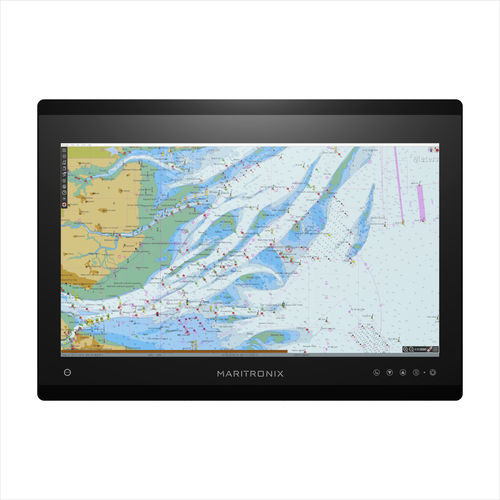

Marine display Maritronix X24

for shipsfor control24"

Overview
The Maritronix X Series is a professional-grade high-brightness marine touchscreen monitor built for commercial and pleasure vessels where reliability, longevity and all‑weather performance are mission-critical. Designed for flush-mount installation, the low-profile enclosure suits bridge and pilothouse consoles and integrates with modern marine control systems. The optically bonded screen prevents internal fogging, improves contrast in humid conditions and the 1500‑nit anti-glare panel ensures full-sun readability.

Key features

• 1500‑nit anti-glare sunlight-readable panel
• Full HD native resolution 1920 × 1080 (16:9)
• Optically bonded display to prevent internal fogging and improve clarity
• 10-point capacitive multi-touch with waterproof EETI technology (operates with wet hands or gloves)
• Front-mounted power button with rear output to remotely switch external systems
• Integrated ambient light sensor for auto-dimming

Construction & thermal design
CNC-machined aluminum housing with UV-resistant finish. IP67-rated enclosure with hydrophobic vent and rear aluminum heatsink for passive thermal dissipation, enabling reliable operation in high-temperature and sun-exposed conditions.

I/O & interfaces
HDMI video input; USB for touch functionality; front power button with rear output connector for external PC or system power control.

Mounting & integration
Low-profile design for flush or panel mounting in bridge or pilothouse consoles. Slim side profile suitable for space-restricted installations.

Scope of delivery

• 1 Monitor
• 1 Power cable
• 1 USB cable
• 1 HDMI cable
• 1 Aux cable for PC power control

Technical specifications

• Model / Series: Maritronix X Series (24-inch variant referenced as X24)
• Display resolution: 1920 × 1080 pixels (Full HD), 16:9
• Brightness: 1500 nits, anti-glare
• Optical bonding: Yes (eliminates fogging, improves clarity)
• Touch panel: 10-point capacitive multitouch (EETI waterproof technology)
• Power control: Front-mounted power button with rear output for external system switching
• Auto-dimming: Integrated ambient light sensor
• Construction: CNC-machined IP67 aluminum housing, UV-resistant coating
• Cooling: Rear aluminum heatsink for passive thermal dissipation
• Operating temperature: -20°C to +70°C
• Power input: 9–36V DC (wide voltage range)
• Interfaces: HDMI (video input), USB (touch functionality)
• Dimensions: 600 × 425 × 63 mm
• Weight: 8600 g
• Case material: Aluminum
• Protection level: IP67 with hydrophobic vent
• Included accessories: power cable, USB cable, HDMI cable, aux cable for PC power control
