Outboard jon boat 16 eJon HD

electricopenrecreational

Description

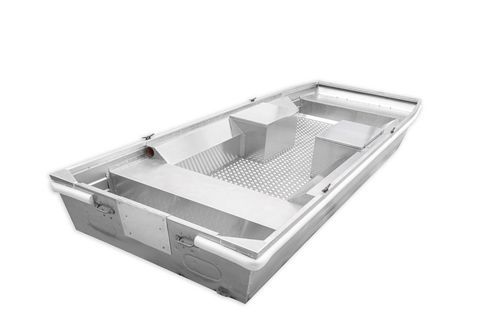

The Marine 16 eJon HD is the electric version of the 16 JON hull, offering good stability, low weight and high payload for coastal and inshore operations. Designed specifically for electric propulsion, it supports electric motors up to 18 kW and accepts a wide range of fit-out options for professional or private use.

Technical data

• Length: 4.90 m
• Beam: 1.79 m
• Height: 0.50 m
• Weight: 240 kg
• Max. payload: 485 kg
• Maximum persons: 5
• Max. engine: 25 HP (electric version supports motors up to 18 kW)
• Max. engine weight: 80 kg
• Transom (outboards): L
• Aluminium thickness (bottom): 2.0 mm
• Aluminium thickness (side): 2.0 mm
• Number of ribs: 9
• Number of keels: 3
• Category: C

Standard accessories

• Inside colour: Aluminium
• Outside colour: Small sticker with e-BOATS design
• Transom drain plug: Std.
• Cross-riveted benches: Filled with polystyrene
• Reinforcing plate on transom: Std.
• 2 bow handles: Std.
• Rear handles on transom: Std.
• 2 storage boxes: Std.
• 4 stainless steel cleats: Std.
• Clamping strap for battery: Std.
• Double-layer aluminium anti-slip floor: Std.
• 2 cable conduits connecting the cables to the engine and the rear: Std.

Optional accessories

• AP-69186 — Seat base
• ME-1350 — Foam set for seats of 14M, 400S, 445S and 450S boats
• OS-34.354.00 — Plastic paddle holder white 35 mm
• ME-1351 — Foam set for seats including installation
• ME-1811 — Navigation light with connection and switch
• ME-1930 — Railing - holder AL 30 cm for all Marine boats
• L-EZ41160A — Holder for drinks in console or deck - stainless steel
• AP-69188 — Seat pedestal adjustable 440 - 660 mm (driver/fishing seat)
• ME-1744 — White rubber fender - price per 1m installed
• OS-46.909.41 — Bimini top - 3-arm, ALU white
• AP-69416 — Seat lock for plug-in pedestals
• L-MAS1020 — Galvanic anode 200g, 110x35x15
• ME-2160 — Marine foam deck set for benches on 14 JON, 14 V JON, 15 JON, 16 JON
• PL-29398 — Ladder SST 3 steps, 190x565 mm
• ME-1120 — Side steering console Al standard with steering
• ME-1812 — Automatic bilge pump with connection and switch
• AR-915031 — Rod holder black - rotating
• ME-1119 — Side steering console Al standard without steering
• OS-46.909.51 — Bimini top - 3-arm, ALU blue
• LA-50240 — Alu paddle 155 cm
• NS-76223 — Upholstery seat new with Marine logo; grey-blue, grey-red or grey-dark grey
• ME-1121 — Plexi shield for side console
• ME-1813 — Bilge pump with connections and switch
• ME-1473 — Mooring canvas 16 Jon
• L-SM7200 — Cleat stainless steel 200 mm

Technical specifications

• Length: 4.90 m
• Beam: 1.79 m
• Height: 0.50 m
• Weight: 240 kg
• Max. payload: 485 kg
• Maximum persons: 5
• Max. engine: 25 HP (electric version supports motors up to 18 kW)
• Max. engine weight: 80 kg
• Transom (outboards): L
• Aluminium thickness (bottom/side): 2.0 mm / 2.0 mm
• Number of ribs: 9
• Number of keels: 3
• Category: C
