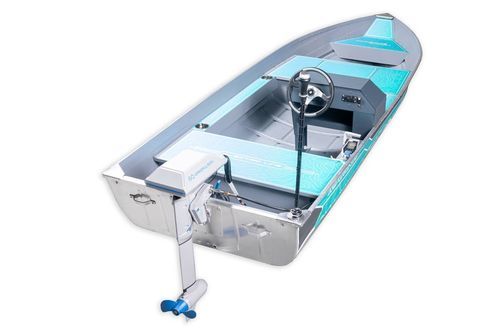

Outboard small boat 14 eR SC

electricrigid hullopen

Overview

Model Marine 14 eR SC is the electric version of the 14R fitted with a side steering console. Designed specifically for electric propulsion, its lightweight aluminium hull ensures easy handling and transport. The boat accepts electric motors up to 6 kW and can be configured with a range of practical options. A large battery compartment is located under the central bench for convenient installation of lithium battery packs.

Standard equipment

• Interior finish: Hempel light grey primer
• Exterior finish: Short stripe - electric design
• Side steering grey console Al: Std.
• 2 oar lock holders: Std.
• Transom drain plug: Std.
• Mooring bow eye: Std.
• Central bench with large battery box: Std.
• Side tunnels for cables: Std.
• Rear bench with floating material inside: Std.
• Keels for straight ride: Std.
• Rounded bow and rear corners for easier transport: Std.
• Transom handles, 2 pcs: Std.
• Battery clamping strap: Std.

Examples of optional accessories

• Wooden oar 210 cm Sea Side (LK-07210)
• Alu oar 220 cm (LA-50300)
• Lithium battery RoyPow 2x24V 100 Ah (AR-567595)
• Lithium battery ePropulsion E60 (AR-901257)
• Battery charger 25A E-propulsion (AR-901444)
• Ambient lighting white - set of 2 pcs with installation and switch (ME-1814)
• Transport wheels plastic with arrest - 1 pair (OS-47.368.09)
• Side steering console Al standard with steering (ME-1120)
• Electric engine ePropulsion SPIRIT 1.0 PLUS S (AR-902001)
• Electric engine ePropulsion NAVY 6.0 EVO S (AR-901480)

Technical specifications

• Length: 4.12 m
• Beam: 1.40 m
• Height: 0.70 m
• Weight (empty): 78 kg
• Maximum load: 310 kg
• Maximum persons: 4
• Recommended electric motor: up to 6 kW (max. engine indicated: 10 HP)
• Max. engine weight: 53 kg
• Transom (outboards): S
• Aluminium thickness – Bottom/Side: 1.2 mm / 1.2 mm
• Number of ribs: 8
• Number of keels: 7
• Category: D
