Outboard jon boat Jon 12 Silver

flat-bottomopenaluminum

Product description

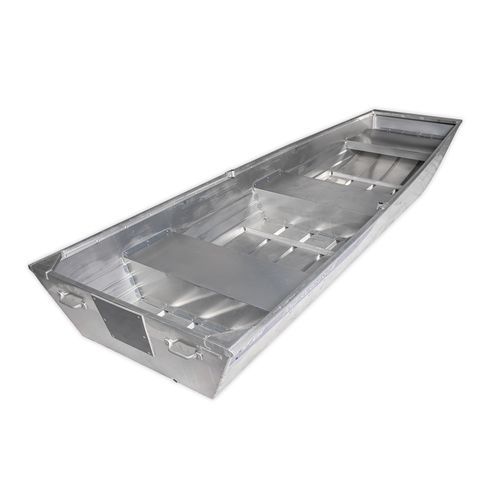

The lightweight aluminium Jon boat Marine Jon 12 Silver is the second smallest model in the Jon range. This flat‑bottom utility boat delivers excellent stability and low weight. Benches filled with polystyrene make the hull unsinkable and provide buoyancy.

Technical data
Length: 3.7 m
Beam: 1.2 m
Height: 0.41 m
Weight: 37 kg
Maximum load capacity: 255 kg
Maximum persons: 3
Maximum engine power: 3.5 HP
Maximum engine weight: 23 kg
Transom for outboards: S
Aluminium thickness (bottom): 1.2 mm
Aluminium thickness (side): 1.2 mm
Number of ribs: 5
Number of keels: 3
Category: D

Standard accessories
Inside colour: Aluminium
Outside colour: Short blue stripe with Marine logo
2 oarlock holders: Std.
Transom drain plug: Std.
Cross‑riveted benches: Filled with polystyrene
Reinforcing plate on transom: Std.
Bow handle: Std.
2 transom handles: Std.

Optional accessories (examples)

• NX-NPN4886 - Mounting kit for car top holder (for Steel 32x22 mm roof carriers)
• ME-1930 - Railing - holder AL 30 cm
• LA-50270 - Alu oar 185 cm
• ME-1348 - Foam set for seats of 10M, 12M and 370S boats
• CB-B0200 - Trailer for a small boat CB-B0200
• ME-1470 - Mooring canvas 12 Jon

Downloads / Multimedia
Related video available (YouTube). PDF product sheet available for download.

Technical specifications

• Length: 3.7 m
• Beam: 1.2 m
• Height: 0.41 m
• Weight: 37 kg
• Maximum load capacity: 255 kg
• Maximum persons: 3
• Maximum engine power: 3.5 HP
• Maximum engine weight: 23 kg
• Transom for outboards: S
• Aluminium thickness (bottom): 1.2 mm
• Aluminium thickness (side): 1.2 mm
• Number of ribs: 5
• Number of keels: 3
• Category CE: D
• Unsinkable by polystyrene‑filled benches
