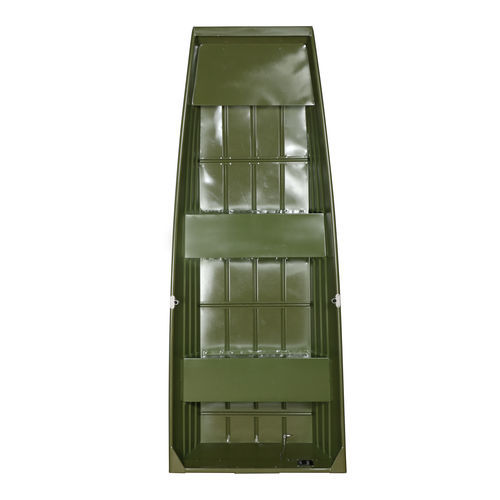

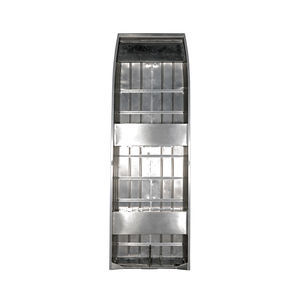

Outboard jon boat Jon 10

flat-bottomopenrecreational

Description
The lightweight aluminium Jon boat Marine Jon 10 Green is the smallest model in the Jon range. Designed for simple inshore use, it offers excellent transverse stability and low weight. Benches filled with polystyrene provide buoyancy that makes the hull effectively unsinkable.

Technical data

• Length: 2.96 m
• Beam: 1.20 m
• Height: 0.41 m
• Weight: 32 kg
• Max. payload: 255 kg
• Max. persons: 3
• Recommended max engine: 3.5 HP
• Max. engine weight: 23 kg
• Transom for outboards: S
• Aluminium thickness (bottom): 1.2 mm
• Aluminium thickness (side): 1.2 mm
• Number of ribs: 3
• Number of keels: 3
• Category: D

Standard accessories

• Inside colour: Green
• Outside colour: Green with Marine logo
• 2 oarlock holders: Std.
• Transom drain plug: Std.
• Cross-riveted benches: filled with polystyrene
• Reinforcing plate on transom: Std.
• Bow handle: Std.
• 2 transom handles: Std.

Optional accessories

• ME-1411 — Mooring canvas 10 Jon
• NX-NPN4886 — Mounting kit for car top holder (for Steel 32x22 mm roof carriers)
• ME-1930 — Railing - holder AL 30 cm for all Marine boats
• L-SG1022 — Oarlock holder for side montage 17 mm, 1 pc
• LA-50270 — Alu oar 185 cm
• ME-1348 — Foam set for seats of 10M, 12M and 370S boats
• NX-1732AERO — Set of 4 pcs holders to Alu aero roof carriers
• L-MAS1020 — Galvanic anode 200g, 110x35x15
• PL-29398 — Ladder SST 3 steps, 190x565 mm
• OS-47.368.09 — Transport wheels plastic with arrest - 1 pair
• AR-915031 — Rod holder black - rotating
• LK-07180 — Wooden oar 180 cm Sea Side, 1 pc
• CB-B0200 — Trailer for a small boat CB-B0200
• NS-75135 — Holder for drinks on seats NS-75109GC/GB and AP-69455 - plastic
• ME-1349 — Foam set for seats of 10M, 12M and 370S boats including installation
• AP-69182 — Foldable seat holder for small Jon and V boats
• OS-40.110.16 — Cleat aluminium 150 mm
• L-SG1021A — Oarlock strong 17 mm for wooden and alu oars, 1 pc
• NS-75109GB — Seat plastic with upholstery and Marine logo grey-blue
• NX-NPN0802 — Car top holder, + requisite accessory in description
• NX-NPN0602 — Set of 4 pcs of fittings for cars with roof railings
• NS-75109GC — Seat plastic with upholstery and Marine logo grey-brown
• LK-47447 — Oarlock plastic 17 mm for wooden and alu oars, 1 pc

Technical specifications

• Length: 2.96 m
• Beam: 1.20 m
• Height: 0.41 m
• Weight: 32 kg
• Max. payload: 255 kg
• Max. persons: 3
• Recommended max engine: 3.5 HP (max engine weight: 23 kg)
• Transom: S (for outboards)
• Hull thickness (bottom/side): 1.2 mm / 1.2 mm
• Ribs: 3
• Keels: 3
• Design category: D
