Electric horn PW2-BN

compressed airfor ships

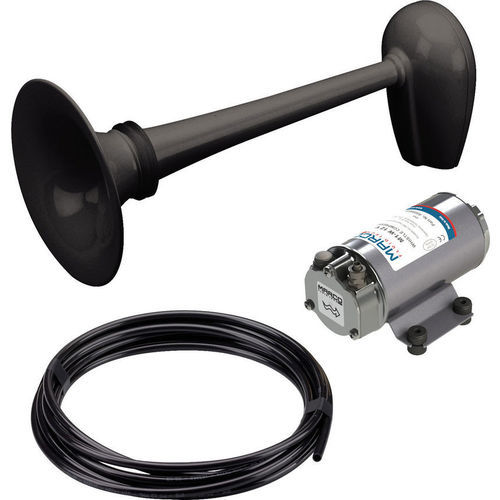

Approved marine signalling whistle supplied complete with black horn Ø200 mm, electric compressor and mounting accessories. Compliant with COLREG 1972 — IMO class IV and certified by recognized bodies.

Variants / Technical details

• Part n. 15000612 — Product: PW2-BN; Voltage: 12 V; Current: 25 A; Frequency: 315 Hz; Sound level: >120 dB (1/3 oct) @1 m; Tube: 8 / 6 mm; Dimensions: Ø200 x 438 x 210 mm.
• Part n. 15000613 — Product: PW2-BN; Voltage: 24 V; Current: 20 A; Frequency: 315 Hz; Sound level: >120 dB (1/3 oct) @1 m; Tube: 8 / 6 mm; Dimensions: Ø200 x 438 x 210 mm.

Approvals

• RINA
• Lloyd's Register MCA
• Bureau Veritas
• BSH
• NMMA

Documentation & media

• Booklet (PDF): PW2-BN_00_ENG.pdf
• Audio sample (MP3): PW2-BN_40_ENG.mp3
• Technical drawing: PW2-BN_D0.jpg

Characteristics / Technical specifications

• Brand: Marco s.p.a.
• Model: PW2-BN
• Horn diameter / finish: Ø200 mm — available chromed or white (commercial name indicates black horn option)
• Includes: electric compressor and mounting accessories
• Compliance: COLREG 1972 — IMO class IV
• Sound level: >120 dB (1/3 oct) measured at 1 m
• Frequency: 315 Hz
• Power options: 12 V (25 A) and 24 V (20 A)
• Connection tube: 8 / 6 mm
• Dimensions: Ø200 x 438 x 210 mm
