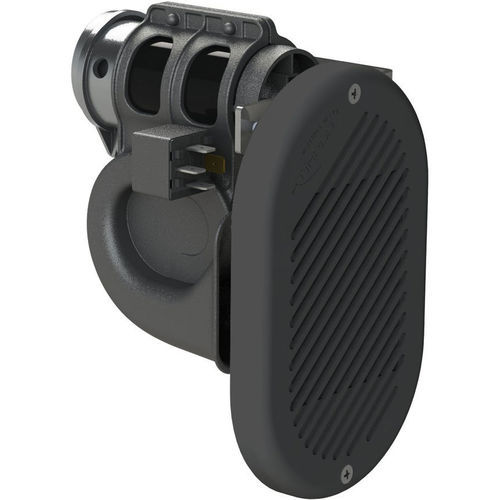

Pneumatic horn HR1/B

electricfor boats <12 mrecessed

Electropneumatic built-in horn specially designed for marine use, featuring an integrated compressor that provides immediate sound output without external air tubing. Suitable for commercial boats, ferries, yachts under 12 m, dredges and RIBs.

Key features

• Integrated compressor — immediate sound output when the push-button is pressed; no external air hose required.
• Installation: built-in, rapid installation.
• Grille material: ASA (black).
• Bracket: steel.
• Tone: marine low tone; Sound level: 120 dB(A) @ 1 m.
• Recommended applications: commercial boats, ferries, yachts < 12 m, dredges, rubber dinghies / RIBs.

Variants / Technical specifications

• Part n. 13408212 — Model: HR1/B — Voltage: 12 V — Current: 20 A — Fuse: 25 A — Frequency: 300 Hz — Sound level: 120 dB(A) @ 1 m — Dimensions: 202 x 156 x 134 mm — Weight: 1 kg — Packaging: Blister
• Part n. 13408213 — Model: HR1/B — Voltage: 24 V — Current: 11 A — Fuse: 15 A — Frequency: 300 Hz — Sound level: 120 dB(A) @ 1 m — Dimensions: 202 x 156 x 134 mm — Weight: 1 kg — Packaging: Blister
• Brand: Marco s.p.a. — SKU: HR1/B

Documentation

• Product datasheet (PDF): HR1-B_00_ENG.pdf
• Audio sample (MP3): available on the product page
• Mounting drawing / plan: available
