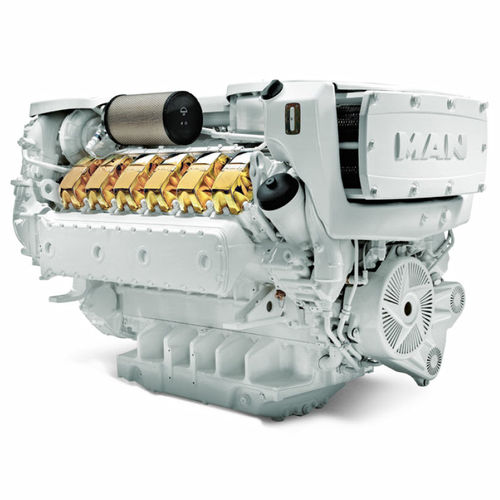

Inboard engine V12-1400dieselboatingturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- boating
- Technology
- turbocharged, common-rail
- Cooling system
- water-cooled
- Lubrication
- oil-injected
- Pollution control standard
- Tier 3, Tier 2
- Power
1,400 ch, 1,550 ch
(1,400 hp, 1,550 hp)- Displacement
24 l
(6 gal)- Number of cylinders
12 unit
- Engine speed
2,300 rpm, 4,680 rpm, 5,180 rpm
(14,451 rad.min-1, 29,405 rad.min-1, 32,547 rad.min-1)- Consumption
267 l/h, 299 l/h
(71 us gal/h, 79 us gal/h)- Bore
128 mm
(5 in)- Stroke
157 mm
(6.2 in)- Length
2,130 mm
(84 in)- Width
1,153 mm
(45 in)- Height
1,230 mm
(48 in)- Weight
2,270 kg
(5,004 lb)
Description
CUSTOMER BENEFITS
High tractive power even at low speeds
Powerful acceleration and rapid reaction to commands
High performance combined with low weight
Compact, space-saving design
High efficiency owing to low fuel consumption
Low running costs and long service life
Low emission values
World-wide service network with rapid supply of spare parts
Characteristics
Turbocharging: Turbocharger with charge air intercooler and waste gate
Fuel system: Common Rail direct fuel injection with electronic control
Engine lubrication: Closed system with forced feeding, oil cooling and filtering
Type of cooling: Plate heat exchanger, seawater cooled
Engine control: Electronic injection control (EDC)
Electronic engine monitoring including diagnostic unit
Fuel: DIN EN 590
