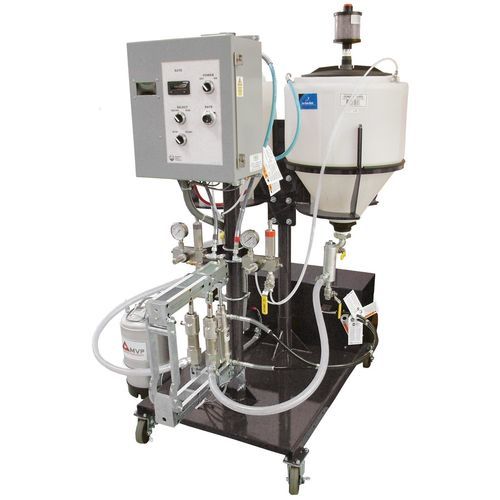

Resin metering - mixing unit MINILINK
with piston pumpfor shipyard

resin metering - mixing unit
resin metering - mixing unit
Add to favorites
Compare this product


Characteristics

Dispensed product
resin
Type
with piston pump
Application domain
for shipyard

Description

MiniLink Hydraulic System Ideal for composite pultrusion manufacturers The MiniLink Hydraulic System features a hydraulic meter and cylinder to drive the metering system, delivers an extremely consistent mix/meter of materials at low flow rates, ideal for low & high pressure applications, and more. The MiniLink system uses a hydraulic motor and cylinder to drive the metering system, which delivers an extremely consistent mix/meter of materials at low flow rates not possible with a pneumatic drive system. It is ideal for low and high pressure applications with material viscosity from 20 cps to 40,000 cps, at flow rates under a half gallon/minute (1.893 L/min.). This is a critical requirement when injecting mixed/metered resin into a pultrusion die, maintaining proper glass to resin ratios with almost no waste. The hydraulic pump reversal is achieved using two magnetic proximity switches for rapid pump reversal change. Both material fluid sections are constructed from stainless steel, and the piston rod and fluid cylinders use hardened 440 stainless steel for wear resistance. Both fluid sections are adjustable for ratio variations, though typical applications only require a 1:1 ratio. The control panel includes a single turn potentiometer to control the speed of the metering system, and an LCD rate indicator for speed reference. Two thermoplastic 15 gallon gravity feed containers with angle base bottoms are standard. Each container feed line includes filter housings with 30-mesh screens. The resin tank lid includes an air driven mixer and the Isocyanates tank lid has a desiccant vent dryer. .

VIDEO
