two-component spraying proportioner / shipyard
MICRO PRO

Add to MyNauticExpo favorites
Compare this product
two-component spraying proportioner / shipyard two-component spraying proportioner / shipyard - MICRO PRO
{{requestButtons}}

Characteristics

  • Type:

    two-component

  • Application domain:

    shipyard

Description

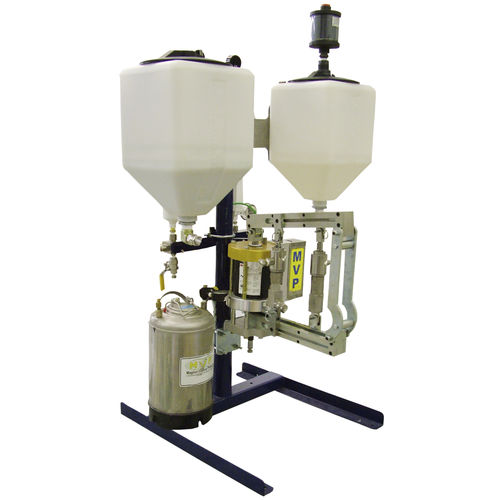

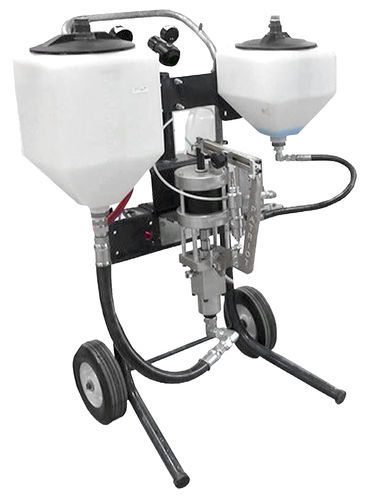

The MicroPro Proportioner System is ideal for low flow rate metering of many epoxy, urethane and silicone materials.

The MicroPro Proportioner System is ideal for low flow rate metering of many epoxy, urethane and silicone materials, works with many application methods including spray, splatter, pour, RTM, and as a table-top proportioner, and is ideal for low or high pressure applications with material viscosity from 20cps to 40,000 cps.

Specifications

5” Air Motor with Two VHPC-2200
Power Ratio: 24:1
Air Requirements: 60 psi at 40 cycles/min. 17 SCFM
3.25” Air Motor
Power Ratio: 10:1
Air Requirements: 60 psi at 40 cycles/min. 7.5 SCFM
Ratio:

Two HVPC-2200: 1:1 to 3.7:1
VHPC-2200 & VHPC-3200-ADH: 1.84:1 to 5.85:1
VHPC-2200 & VHPC-4200: 4.15:1 to 13:1
Applications:

Urethane: Gelcoat – Spray, Adhesive – Pour
Urethane and Epoxy: RTM and LRTM
Silicone Bags, Splatter Nozzle
Quick Shot, Epoxy, and Urethane Table-Top Proportioner (pour with mixer or two-stream)

Shot size controls
Auto Level control & alarm
In-line resin heaters & heated hoses
Recirculation
Innovator Control Box
