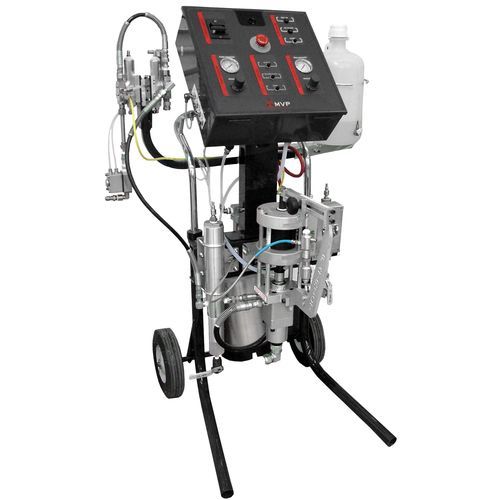

vacuum infusion injection machine / for RTM / shipyard
PATRIOT™ INNOVATOR

{{requestButtons}}

Characteristics

  • Specifications:

    for vacuum infusion, for RTM

  • Application domain:

    shipyard

Description

Highly accurate Patriot™ mix/meter technology
Powered and operated solely through pneumatics
Increased efficiency
Unique control panel
Easy to operate

The Patriot™ Innovator Injection Systems were designed for injecting polyester, vinylester and methacrylate resins and catalyst at controlled pressures. The material mixing is done on demand at the injection head, and the catalyst ratio can be adjusted from 0.75% to 2.5%.

The fully pneumatic automated controls, controlling the number of strokes during injections, recirculation, and more makes the process easier and more efficient.

Features of these systems include:

Fully pneumatic, automated controls
Stroke number counter
Recirculation
Resin Gel Alarm (RGA)
Mold Pressure Guard (MPG)
Integrated controls for
Auto Gun
Turbo Autosprue/IVx3/PPVS on/off
Flush Controls

PATRIOT INNOVATOR PRO SYSTEM
Output Capabilities: Up to 7.5 lbs./min. (3.4 kg/min.) depending on materials & application
Catalyst Pressure: 0.75% to 2.5% by volume
Air Consumption: 18 CFM
Pump Ratio: 7:1
Maximum Air Input Pressure: 100 psi (7 bar, 0.7 MPa)

PATRIOT ™ INNOVATOR MEGAJECT INNOVATOR SYSTEM
Output Capabilities: Up to 7.5 lbs./min. (3.4 kg/min.) depending on materials & application
Catalyst Pressure: 0.75% to 2.5% by volume with PAT CP – 0980, 1% – 3% with PAT CP 1530
Air Consumption: 18 CFM/150 ltrs
Pump Ratio: 7:1
Maximum Air Input Pressure: 100 psi (7 bar, 0.7 MPa)

PATRIOT ™ INNOVATOR HIGH VOLUME SYSTEM
Output Capabilities: 7lb-30lbs/min (1.5kg-6.7kg/min)
Catalyst Percentage: 0.8%-3.8% with PAT-CP 300
Air Consumption: 43 CFM
Maximum Air Input Pressure: 100 psi (7 bar)
