Technical details about 301-102

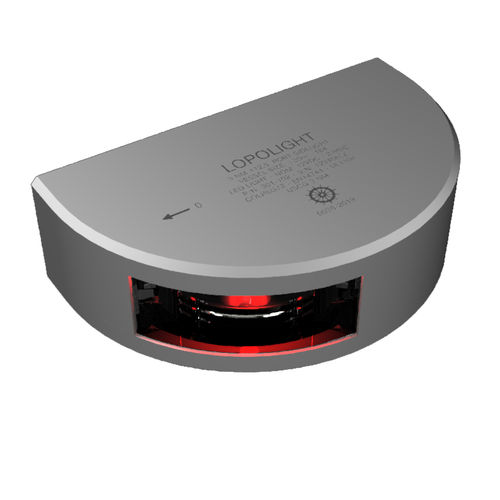

112,5° port sidelight, single, vertically mounted
LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.
Easy to install, adaptor and screws included (when applicable).
Approvals - Worldwide typeapproval (please refer to certificates on Lopolight.com)
Included in package - 1 Navigation light, precabled with 2,5 meter marinlofcde cable, 2 Mounting screws (M6 * 8 mm), WlSfellation guide
Measurements - See drawing
Materials - Anodised aluminum 25p, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage - 10,0-32,0 VDC
Power consumption - 2,0 Watt, Current @ 12 VDC: 152 mA: Current @ 24 VDC: 95 mA
Light colors - Red
Intensity - 15cd
Visibility (@K=0.8) - 3 nm
Number of LED's - 1
Suggested feed cables - 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2
Expected life -
Vessel size - Above 50 meter (164 feet)
Mounting - Vertical
