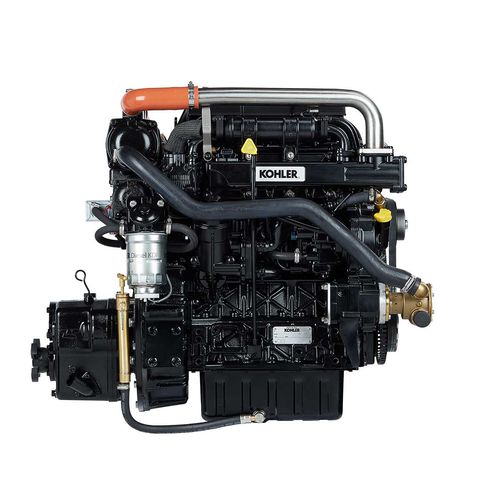

Inboard engine KDI 1903TCR-MP
dieselboatingdirect fuel injection

inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating
Technology
direct fuel injection, atmospheric
Cooling system
water-cooled
Power

56 ch (56 hp)

Number of cylinders

3 unit

Displacement

1,861 cm³ (63 US fl oz)

Engine speed

2,600 rpm (16,336 rad.min-1)

Bore

88 mm (3.5 in)

Racing

102 mm (4 in)

Compression ratio

17 unit

Length

775 mm (31 in)

Width

618 mm (24 in)

Height

908 mm (36 in)

Weight

284 kg (626 lb)

Description

Marine inboard engines series KDI were developed to grant very high performances and reliability. They perform high power rating and torque at low engine speed. This allows to reach high cruising speed at low engine speed with reduced noise and vibrations. KDI1903TCR-MP and KDI2504TCR-MP are direct injection inboard diesel engines, turbo common rail, naturally aspirated, fresh water cooled via heat exchanger. Cast-iron engine block, one piece cast-iron cylinder head and gear drive command assure exceptional sturdiness. Specifics Cylinders 3 Bore & Stroke 88 x 102 Displacement (cm3) 1861 Power Max HP 56 hp Power Max KW 42 kw Compression ratio 17.4 Weight 284 kg •• Height 775 mm Width 618 mm Lenght 908 mm Round/Minute 2600 LEGEND: ••WITH TECHNODRIVE TMC 60 REVERSING GEAR Accessories Looming 10 m Oil extraction pump Cable extension for twin panel application Conical counterflange Hot water take-off kit Hydraulic pump pre-set Rubber mounts Analogue instruments: Water Temperature and Oil pressure Oil pressure sensor Trolling-valve for gearbox Insulated poles version
