Sailboat capstan TENDER WINCH
electricaluminum base

sailboat capstan
sailboat capstan
sailboat capstan
Add to favorites
Compare this product

Characteristics

Application domain
for sailboats
Operation
electric
Base material
aluminum base
Working load

90 kg, 125 kg (198 lb)

Description

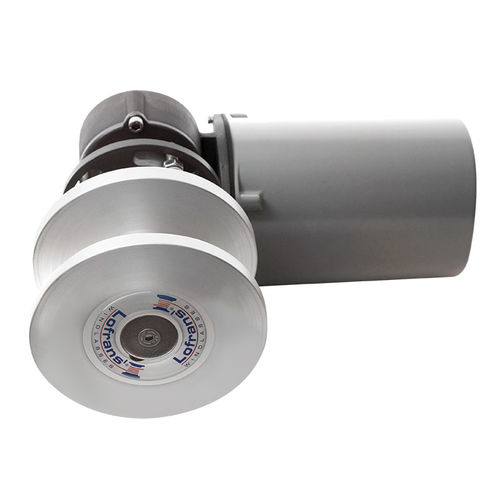

The Tender Winch models are units designed to recover a small tender or a jet ski. They are assembled using a heavy duty electric motor and gearbox, with the motor contained in an IP67 rated cover to be protected from humidity and sea water, and by strong aluminum drum able to contain the necessary belt. They are available at a power rating of 700 W at 12 V or 24 V. The drum is driven by use of a high torque worm gear box with the gear case made in black anodised marine aluminum. The gears are made of special bronze and steel in order to withstand the high stress during operation. The top part is made by a simple construction of an anodised marine aluminum for the base and drum, and a stanless steel AISI 4 3 1 shaft.

Catalogs
