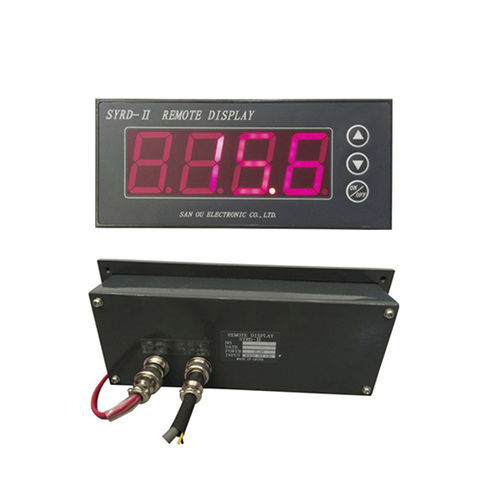

Ship repeater SY-II

for compasseswith LED display

Under the control of microcomputer chip , the inside stepping motor will rotate to indicator the course heading . Meanwhile , there is also a nixie tube to show the heading through receiving the digital signal from the NMEA0183 communication protocol. Our heading repeater provides digitally accurate, precise readings of the course heading on an easy-to-read, bright display. This item can support the use of our 3-axis digital compass (Model:DCM300) or other equipment which outputs NMEA0183 protocol signal. Parameter - Precision: 0.1° Resolution: 0.1° Repeatability: 0.1° Input protocol: NMEA0183 ，HDT/HDG/HDM Baud rate : 4800bps Input voltage: +18V ~ +40V DC Output voltage: +12V Working temperature: -20℃~ +65℃
